SELECT A DIAGRAM

01 - Cover


02 - Door


04 - Cabinet


06 - Shelves


08 - System

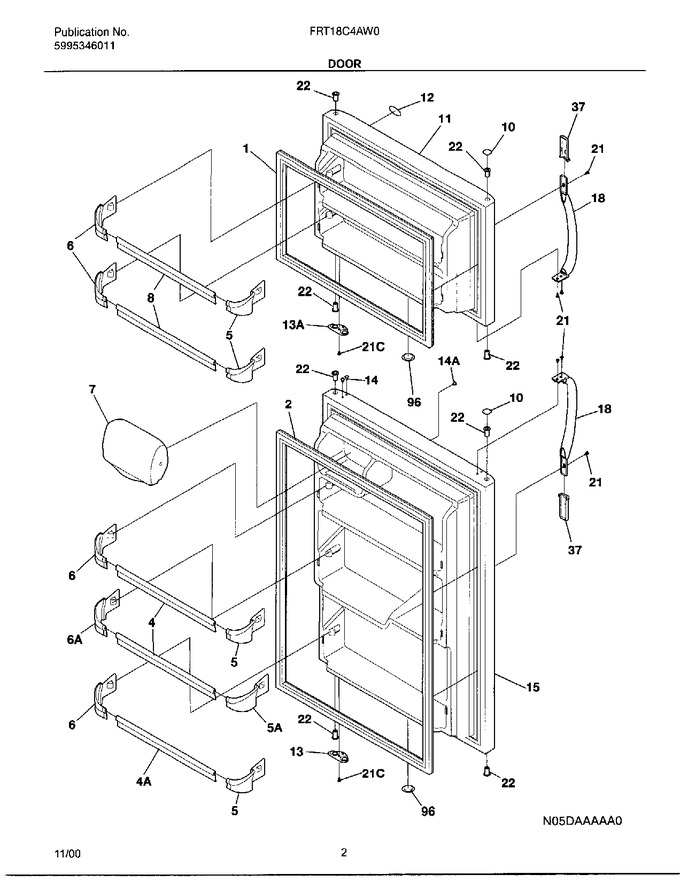

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	240331401		Rack-door,20.25``			Immediately	$ 47.78
5	240311502		Support-door Rack,2 Liter ,rh			Immediately	$ 11.34
6	240311501		Support-door Rack,2 Liter ,lh			Immediately	$ 11.34
7	240337701		Door-dairy,w/o Graphics ,white			Immediately	$ 34.02
8	240331401		Rack-door,17.99``   (Replaces: 240331402)			Immediately	$ 47.78
10	240381301		Plug-button,hinge Brg Hole ,white ,(2)			Immediately	$ 18.95
11	240410201		Panel-frzr Door,white ,complete Assy.				$ 466.82
12	218917601		Label-nameplate,white				$ 2.98
13	240312401		Door Stop,refrig ,plated		Appelez-nous	-
14	240494001		Plug-button, White   (Replaces: 218915701)			Immediately	$ 18.20
15	241798501		Panel-refr Door,white ,complete Assy.   (Replaces: 240410301)			Immediately	$ 543.29
18	218668001		Handle-door, White			Immediately	$ 66.16
21	5304515677		Screw,truss Hd Quad ,10-16 X .500   (Replaces: 240383401)			Immediately	$ 19.23
22	5304507146		Bearing-hinge,(8)   (Replaces: 240311201)			Immediately	$ 7.59
37	215870619		Trim-handle, 2.47``, White, W/chrome Band				$ 72.72
96	240345501		Plug-foam Hole,white		Appelez-nous	-
13A	240312402		Door Stop,freezer ,plated				$ 25.00
14A	240494001		Plug-button,screw Type ,white   (Replaces: 240383001)			Immediately	$ 18.20
21C	218252201		Screw,8 Truss Hd ,10-32ca X 0.500   (Replaces: 218252200)			Immediately	$ 14.18
4A	240331403		Rack-door,20.30``		Appelez-nous	-
5A	240331502		Support-door Rack,gallon ,rh			Immediately	$ 13.46
6A	240331501		Support-door Rack,gallon ,lh			Immediately	$ 13.46
F1	241872503		Gasket-frzr Door,white ,magnetic   (Replaces: 240370905)			Immediately	$ 137.66
F2	242193213		Gasket-refr Door,white ,magnetic   (Replaces: 240370906)			Immediately	$ 190.22
NI	218676001		Band-decorative,chrome ,handle Trim				$ 36.17

    View Diagram in Separate Window       Print Part List
