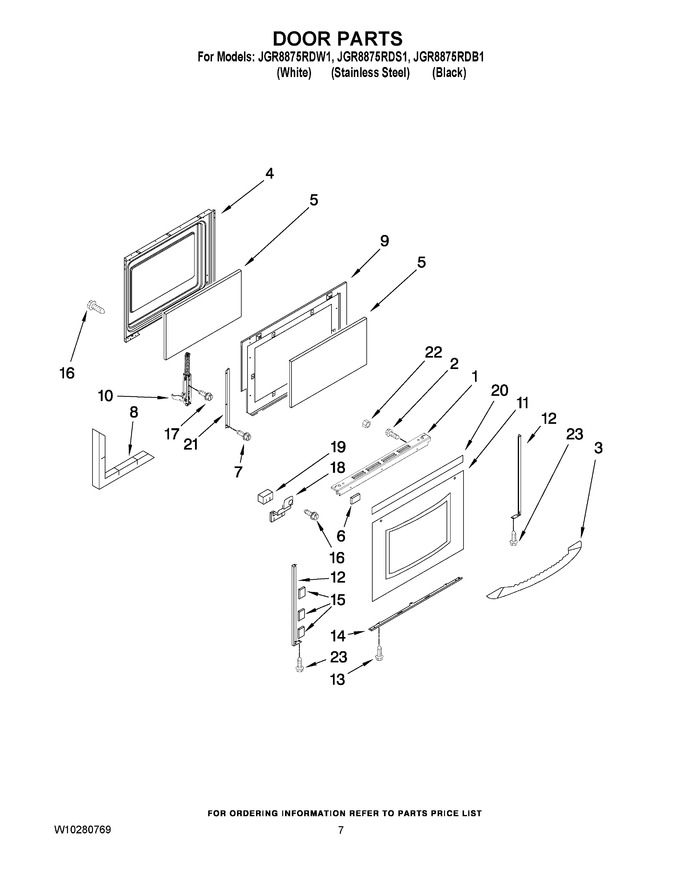

05 - Door Parts


06 - Drawer And Rack Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3608F139-70		Trim, Top (black)				$ 12.86
1	3608F139-71		Trim, Top (white)		Appelez-nous	-
2	W11164114		Screw   (Replaces: W10176584)				$ 3.76
3	7701P467-60		Handle, Door (stainless)		Appelez-nous	-
4	2402W297-19		Liner, Door				$ 152.41
5	74003645		Glass, Inner (2)   (Replaces: 7902P436-60)			Immediately	$ 162.53
6	WP74004224		Tape (white)   (Replaces: 8270P139-60)				$ 10.53
7	W11347848		Screw   (Replaces: 7101P376-60)				$ 12.20
8	7002P246-60		Insulation, Door				$ 58.49
9	3601F380-51		Retainer, Insulation				$ 25.83
10	74010546		Hinge, Door   (Replaces: 7106P124-60)			Immediately	$ 77.34
11	7902P784-60		Glass, Outer Door (white)		Appelez-nous	-
11	7902P792-60		Glass, Outer Door (black)		Appelez-nous	-
12	3608F126-71		Trim, Door Side (white)				$ 34.81
12	3608F126-70		Trim, Door Side (black)				$ 58.04
13	WP98008545		Screw   (Replaces: 7101P633-60)				$ 15.94
14	3608F092-70		Trim, Lower Door (black)				$ 66.03
14	3608F092-71		Trim, Lower Door (white)				$ 55.22
15	W10208308		Tape, Double Sided (white)		Appelez-nous	-
15	W10208307		Tape, Double Sided (black)		Appelez-nous	-
16	WP3196175		Screw   (Replaces: 3196165)				$ 6.47
17	WP4159193		Screw   (Replaces: 7101P282-60)				$ 4.29
18	3801P858-45		Bracket, Handle (left)				$ 6.01
18	3801P857-45		Bracket, Handle (right)		Appelez-nous	-
19	7002P484-60		Insulation, Corner		Appelez-nous	-
20	8270P090-60		Tape, Foil (3``)		Appelez-nous	-
21	3801F886-51		Bracket, Window (2)				$ 38.25
22	WP3400029		Nut   (Replaces: 7103P176-60)			Immediately	$ 6.98
23	WP3400832		Screw (black)   (Replaces: 3196168)			Immediately	$ 6.98
23	3196166		Screw (white)				$ 6.31
