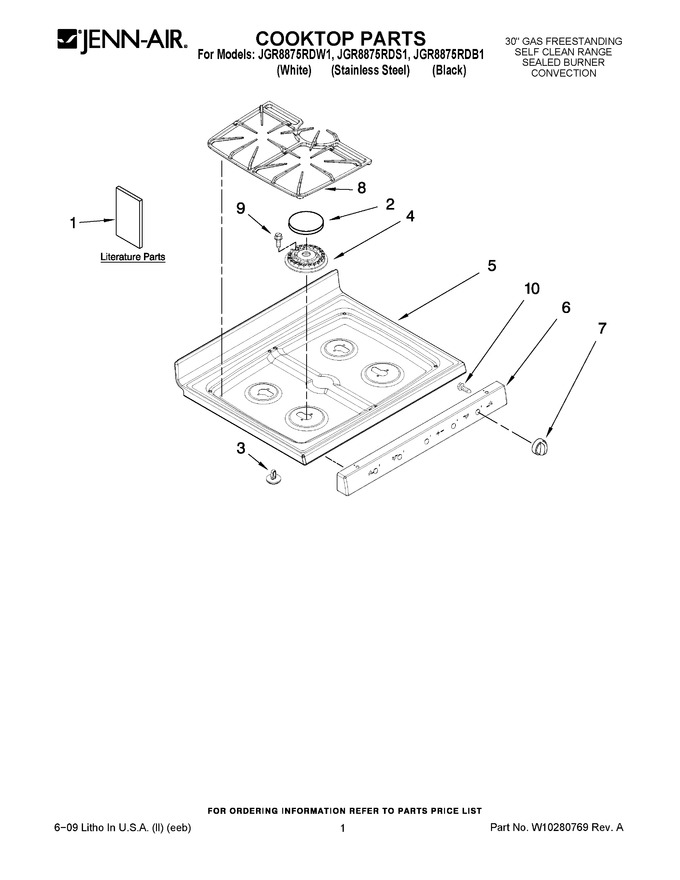

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8101P571-60 | Installation Instructions |
|
- | |||||
| 1 | 8113P714-60 | Owners Manual |
|
- | |||||
| 1 | 8119P373-60 | Wiring Diagram |
|
- | |||||
| 1 | 9762761 | Tip, Safe Cooking (english) |
|
- | |||||
| 1 | W10065852 | Tip, Safe Cooking (french) |
|
- | |||||
| 2 | WP74007752 | Cap, Burner (rf) (gray) (Replaces: 7504P205-60) |
|
$ 98.17 | |||||
| 2 | WP74007421 | Cap, Burner (rr & Lr) (gray) (Replaces: 7504P140-60) |
|
$ 81.71 | |||||
| 2 | WP3191898 | Cap, Burner (ctr) (black) (Replaces: 7504P136-60) |
|
$ 60.86 | |||||
| 2 | 7504P139-60 | Cap, Burner (ctr) (gray) |
|
- | |||||
| 2 | WP74007925 | Cap, Burner (rf) (black) (Replaces: 7504P219-60) |
|
$ 86.81 | |||||
| 2 | 7504P138-60 | Cap, Burner (lf) (black) |
|
- | |||||
| 2 | WP74007420 | Cap, Burner (lf) (gray) (Replaces: 7504P141-60) |
|
$ 112.29 | |||||
| 2 | WP74007415 | Cap, Burner (rr & Lr) (black) (Replaces: 7504P137-60) |
|
$ 87.35 | |||||
| 3 | 74008761 | Spacer, Snap-in (Replaces: 8010P149-60) |
|
$ 7.55 | |||||
| 4 | WPW10406797 | Burner (lf) (Replaces: 8286182) |
|
$ 79.64 | |||||
| 4 | WPW10406283 | Burner (rr & Lr) (Replaces: 7540P043-60) |
|
$ 66.87 | |||||
| 4 | WPW10406878 | Burner ((rf)) (Replaces: 8286183) |
|
Immediately | $ 92.12 | ||||
| 4 | WPW10406243 | Burner (ctr) (Replaces: 8286181) |
|
Immediately | $ 33.50 | ||||
| 5 | 2001F287-81 | Cooktop (white) |
|
- | |||||
| 5 | 2001F287-09 | Cooktop (black) |
|
- | |||||
| 6 | 2616F328-81 | Panel, Manifold (white) |
|
- | |||||
| 6 | 2616F328-09 | Panel, Manifold (black) |
|
- | |||||
| 7 | WP74009147 | Knob, Control (5) (brushed Chrome) (Replaces: 7733P389-60) |
|
Immediately | $ 41.66 | ||||
| 8 | 7518P190-60 | Grate, Burner (2) (black) |
|
- | |||||
| 8 | 7518P192-60 | Grate, Burner (2) (gray) |
|
- | |||||
| 9 | WP3368921 | Screw (8) (Replaces: 7101P685-60) |
|
Immediately | $ 6.42 | ||||
| 10 | W11233072 | Screw (Replaces: 7101P388-60) |
|
Immediately | $ 12.62 |
