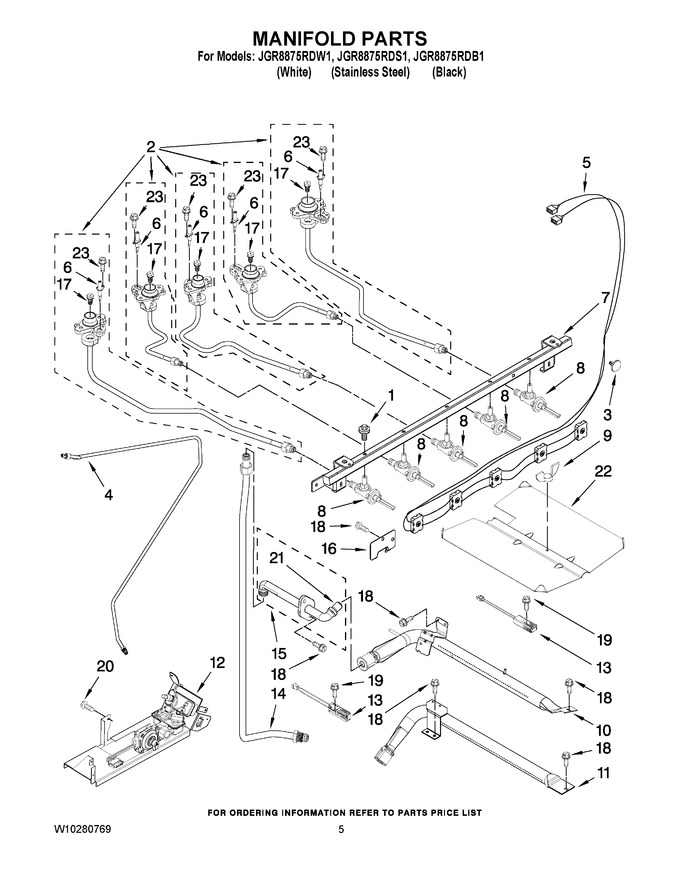

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 71003231 | Screw, Valve |
|
- | |||||
| 2 | 7527P125-60 | Holder, Orifice (lr) |
|
$ 72.52 | |||||
| 2 | 7527P101-60 | Holder, Orifice (lf) |
|
- | |||||
| 2 | 7527P097-60 | Holder, Orifice (ctr) |
|
$ 131.36 | |||||
| 2 | W10154209 | Holder, Orifice (rr) (Replaces: 7527P124-60) |
|
$ 140.40 | |||||
| 2 | 7527P095-60 | Holder, Orifice (rf) |
|
- | |||||
| 3 | 74008761 | Spacer, Snap-in (Replaces: 8010P149-60) |
|
$ 7.55 | |||||
| 4 | 7506P361-60 | Tubing, Main Supply |
|
- | |||||
| 5 | W10173438 | Harness, Igniter Includes Switches |
|
- | |||||
| 6 | 2616F328-81 | Ignitor, Top Burner (4) |
|
- | |||||
| 7 | 7513P524-60 | Pipe, Manifold |
|
- | |||||
| 8 | 74010751 | Valve (lf) (Replaces: 7502P501-60) |
|
$ 242.95 | |||||
| 8 | 7502P500-60 | Valve (lr/rr/rf) |
|
$ 118.46 | |||||
| 8 | WP7502P499-60 | Valve (ctr) (Replaces: 7502P499-60) |
|
$ 234.74 | |||||
| 9 | 7103P030-60 | Nut |
|
$ 6.37 | |||||
| 10 | W10160904 | Burner, Broiler |
|
$ 180.47 | |||||
| 11 | 31945701 | Burner, Bake |
|
- | |||||
| 12 | 7501P233-60 | Valve/regulator |
|
- | |||||
| 13 | WP7432P136-60 | Ignitor (bake) (Replaces: 7432P136-60) |
|
Immediately | $ 84.62 | ||||
| 13 | 74007498 | Ignitor (broil) |
|
Immediately | $ 78.40 | ||||
| 14 | 74008830 | Tubing (broiler Fitting To Valve) (Replaces: 7506P368-60) |
|
$ 74.95 | |||||
| 15 | 74008818 | Fitting, Broiler (Replaces: 7507P357-60) |
|
$ 73.73 | |||||
| 16 | 4005F421-45 | Cover,igniter |
|
- | |||||
| 17 | 7509P123-60 | Orifice, Burner (lr/rf/rr) |
|
$ 86.44 | |||||
| 17 | 7509P120-60 | Orifice, Burner (lf) |
|
- | |||||
| 17 | W10156836 | Orifice, Burner (ctr) (Replaces: 7509P124-60) |
|
$ 90.07 | |||||
| 18 | W11233072 | Screw (Replaces: 74002979) |
|
Immediately | $ 12.62 | ||||
| 19 | WP4159193 | Screw (Replaces: 7101P282-60) |
|
$ 4.29 | |||||
| 20 | WP4159193 | Screw (Replaces: 7101P027-60) |
|
$ 4.29 | |||||
| 21 | 74008834 | Orifice (Replaces: 7507P366-60) |
|
$ 46.76 | |||||
| 22 | 3601P336-45 | Baffle, Broil Burner |
|
$ 194.65 | |||||
| 23 | WP8273062 | Screw (Replaces: 8273062) |
|
Immediately | $ 7.12 | ||||
| NI | 5789A601-60 | Spuds, Lp Gas (kit Of 5) |
|
- |
