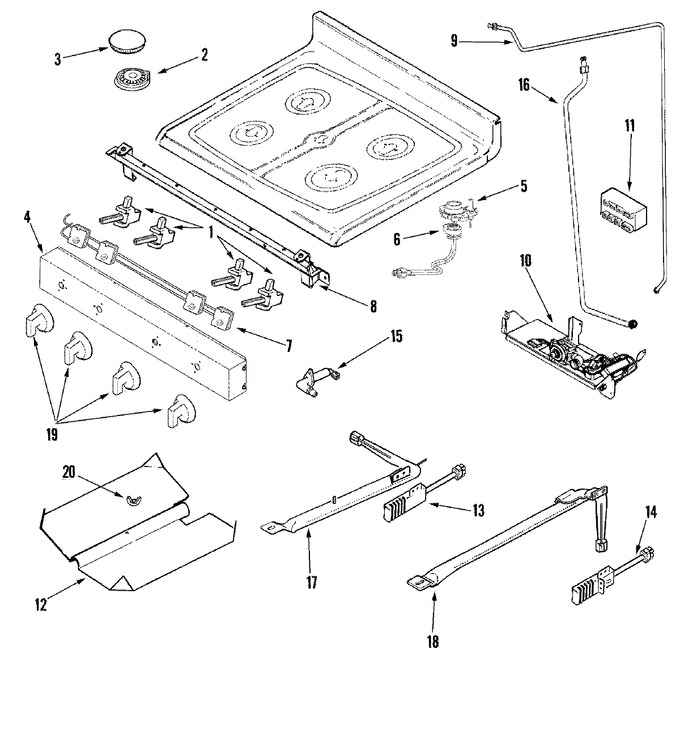

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP74009857 | Screw, T-stat/valve Mtg (Replaces: 74009857) | 10 |
|
$ 4.95 | ||||
| 1 | 74010752 | Valve, 12k (copreci) | 10 |
|
- | ||||
| 1 | 74010751 | Valve, 16k (copreci) | 10 |
|
$ 242.95 | ||||
| 1 | WP7502P499-60 | Valve, Burner (5k Copreci) (Replaces: 74010629) | 10 |
|
$ 234.74 | ||||
| 2 | W11772394 | Screw, Self Tapping----s (Replaces: 74007410) | 10 |
|
Immediately | $ 10.94 | |||
| 2 | WPW10406243 | Base, Burner (5k) (Replaces: 74007411) | 10 |
|
Immediately | $ 33.50 | |||
| 2 | WPW10406878 | Base, Burner (16k) (Replaces: 74007413) | 10 |
|
Immediately | $ 92.12 | |||
| 2 | WPW10406283 | Base, Burner(9.2k) (Replaces: 74009900) | 10 |
|
$ 66.87 | ||||
| 3 | 74010189 | Cap, Burner (med 9.2-blk) | 10 |
|
$ 47.93 | ||||
| 3 | WP8284669 | Cap, Burner (smr-blk) (Replaces: 74007748) | 10 |
|
Immediately | $ 64.79 | |||
| 3 | 74007750 | Cap, Burner (lrg-blk) | 10 |
|
- | ||||
| 4 | 2616N391-50 | Panel, Manifold | 10 |
|
- | ||||
| 4 | W11693756 | Screw (8abx19/32-zn) (Replaces: 74003004) | 10 |
|
Immediately | $ 12.65 | |||
| 4 | 74008761 | Spacer, Snap-in | 10 |
|
$ 7.55 | ||||
| 5 | WP74009958 | Ignitor, Top Burner Assy. (Replaces: 74009958) | 10 |
|
Immediately | $ 28.85 | |||
| 6 | 7527P098-60 | Orifice Holder/tube Asy (lr) | 10 |
|
$ 54.33 | ||||
| 6 | 74009099 | Orifice Holder/tube Assy.(rf) | 10 |
|
$ 52.51 | ||||
| 6 | W10154209 | Orifice Holder/tube Assy.(rr) (Replaces: 74009100) | 10 |
|
$ 140.40 | ||||
| 6 | 7527P113-60 | Orifice Holder/tube Asy (lf) | 10 |
|
- | ||||
| 7 | WP74010630 | Harness, Switch (Replaces: 74010630) | 10 |
|
Immediately | $ 213.06 | |||
| 8 | 74008809 | Pipe, Manifold | 10 |
|
- | ||||
| 9 | 74008829 | Tubing, Supply | 10 |
|
- | ||||
| 10 | 74010218 | Valve/regulator Assembly | 10 |
|
- | ||||
| 11 | 74008821 | Module, Spark | 10 |
|
$ 212.63 | ||||
| 11 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 12 | 3601P336-45 | Baffle, Broil Burner (Replaces: 74008819) | 10 |
|
$ 194.65 | ||||
| 13 | 74007498 | Igniter, Oven | 10 |
|
Immediately | $ 78.40 | |||
| 13 | WP4159193 | Screw (10-24x5/16-ni) (Replaces: 7101P282-60) | 10 |
|
$ 4.29 | ||||
| 14 | WP7432P136-60 | Ignitor, Fs Bake/broil (Replaces: 74008064) | 10 |
|
Immediately | $ 84.62 | |||
| 14 | WP4159193 | Screw (10-24x5/16-ni) (Replaces: 7101P282-60) | 10 |
|
$ 4.29 | ||||
| 15 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 15 | 74008818 | Fitting, Broil Burner | 10 |
|
$ 73.73 | ||||
| 16 | 74008830 | Tubing, Broil | 10 |
|
$ 74.95 | ||||
| 17 | 74008820 | Burner, Broil | 10 |
|
- | ||||
| 18 | 31945701 | Burner, Bake | 10 |
|
- | ||||
| 19 | 7733P499-60 | Knob, Burner | 10 |
|
- | ||||
| 20 | 7103P030-60 | Nut, Wing | 10 |
|
$ 6.37 |
