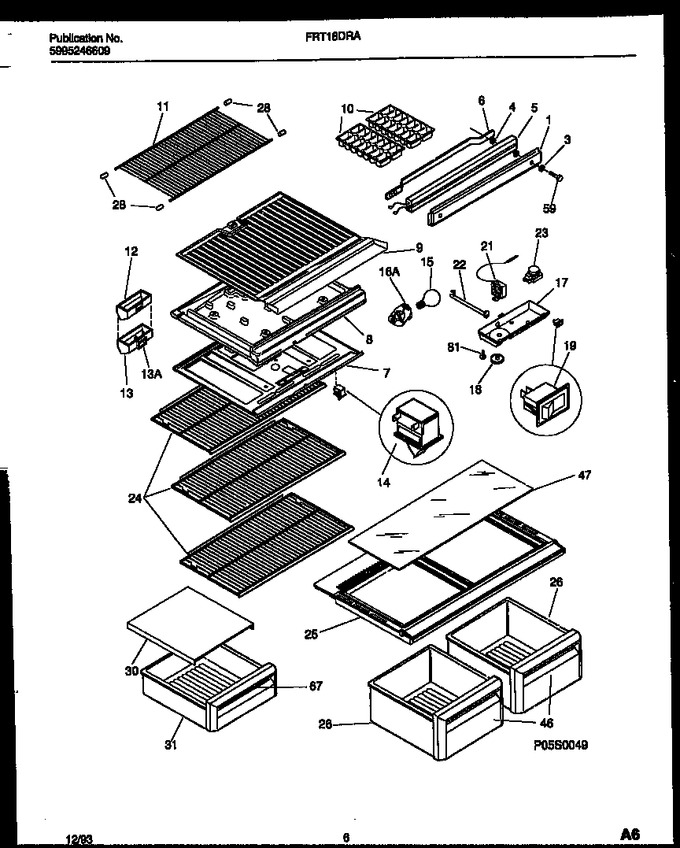

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3206450 | Mullion, Almond |
|
- | |||||
| 3 | 5303206754 | Washer No. 10 Flat, 7/32 X 7/16 Od, Steel |
|
- | |||||
| 4 | 215882100 | Spacer-mullion Mtg, Stainless Steel |
|
- | |||||
| 5 | 3206445 | Heater-mullion |
|
- | |||||
| 6 | 215170802 | Strap-mullion, Mtg |
|
- | |||||
| 7 | 3206454 | Top Panel-refr |
|
- | |||||
| 8 | 3206456 | Divider, Styrofoam |
|
- | |||||
| 9 | 3206455 | Bottom Panel-frzr |
|
- | |||||
| 10 | 5303001324 | Tray-ice, Plastic, (2) |
|
- | |||||
| 11 | 5303288242 | Shelf-freezer |
|
$ 403.31 | |||||
| 12 | 5308014667 | Deflector-air, W/seal |
|
- | |||||
| 13 | 5303001448 | Cover-air Deflector |
|
- | |||||
| 14 | 5309918806 | Switch-light/lamp |
|
Immediately | $ 21.97 | ||||
| 15 | 5303001179 | Light Bulb/lamp,40 W |
|
- | |||||
| 17 | 5303299980 | Box-control |
|
- | |||||
| 18 | 5303299979 | Knob-temp Control |
|
- | |||||
| 19 | 5303286905 | Switch-energy Saver |
|
$ 27.08 | |||||
| 21 | 5303018894 | Control-temperature |
|
- | |||||
| 22 | 3018891 | Housing, Cont Cap Tube |
|
- | |||||
| 23 | 215846602 | Timer (Replaces: 215267800) |
|
Immediately | $ 28.20 | ||||
| 24 | 5303283109 | Shelf, Sliding, Wire, Refr Section |
|
- | |||||
| 25 | 5303207340 | Cover-crisper Pan, With Beam, Less Insert |
|
$ 265.80 | |||||
| 26 | 3206438 | Pan-crisper |
|
Immediately | $ 227.80 | ||||
| 28 | 3201150 | Cap-protector |
|
$ 4.57 | |||||
| 30 | 5303207338 | Cover-meat Pan |
|
- | |||||
| 31 | 215742602 | Pan-meat |
|
$ 174.40 | |||||
| 46 | 215357601 | Front-crisper Pan |
|
- | |||||
| 47 | 5303299999 | Insert-pan Cover, Glass, White Graphics |
|
- | |||||
| 59 | 5308012258 | Screw |
|
$ 2.25 | |||||
| 67 | 215357801 | Front-meat Pan |
|
- | |||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 12A | 5303001449 | Seal-air Deflector (non-illustrated) |
|
$ 2.12 | |||||
| 13A | 5303200590 | Extension, Air Deflector, With Insulation |
|
- | |||||
| 16A | 218906802 | Socket-light/lamp (Replaces: 5308000815) |
|
$ 17.72 | |||||
| 17A | 5308016567 | Nut-anchor (non-illustrated) |
|
- | |||||
| 21A | 5303001260 | Screw |
|
$ 6.73 | |||||
| 23A | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 | |||||
| 7A | 5303001380 | Screw |
|
- | |||||
| 8A | 3018900 | Harness-wiring, Control/divider (non-illustrated) |
|
- | |||||
| 8B | 3205266 | Protector-edge (non-illustrated) |
|
$ 80.09 |
