Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP7701P475-60 Handle, Door   (Replaces: 7701P475-60) Special Order $ 251.94

2 7760P217-60 Panel, Door Appelez-nous -
3 W11233072 Screw   (Replaces: 7101P388-60) In-Stock Immediately $ 12.62

4 8038P040-60 Plate, Back (2) (handle Mtg.) Appelez-nous -
5 7101P668-60 Screw Appelez-nous -
6 7201P138-60 Gasket, Window Appelez-nous -
7 3804F184-45 Retainer, Glass Support (2) Appelez-nous -
8 7902P753-60 Glass, Outer Door Special Order $ 55.64

9 7902P542-60 Glass, Inner Door Appelez-nous -
10 W11347848 Screw   (Replaces: 7101P376-60) Special Order $ 12.20

11 3601F354-45 Baffle, Door Special Order $ 66.15

12 7002P488-60 Insulation (2) Appelez-nous -
13 7902P521-60 Glass, Inner (2) Appelez-nous -
14 7907P034-60 Frame, Glass Appelez-nous -
15 2402W248-19 Liner, Door Appelez-nous -
16 WP74001574 Nut, Snap (2)   (Replaces: 7103P141-60) In-Stock Immediately $ 9.91

17 WP7201P091-60 Gasket, Door   (Replaces: 7201P091-60) Special Order $ 137.97

18 7106P148-60 Hinge, Door (2) Appelez-nous -
19 WP4159193 Screw (4)   (Replaces: 7101P282-60) Special Order $ 4.29

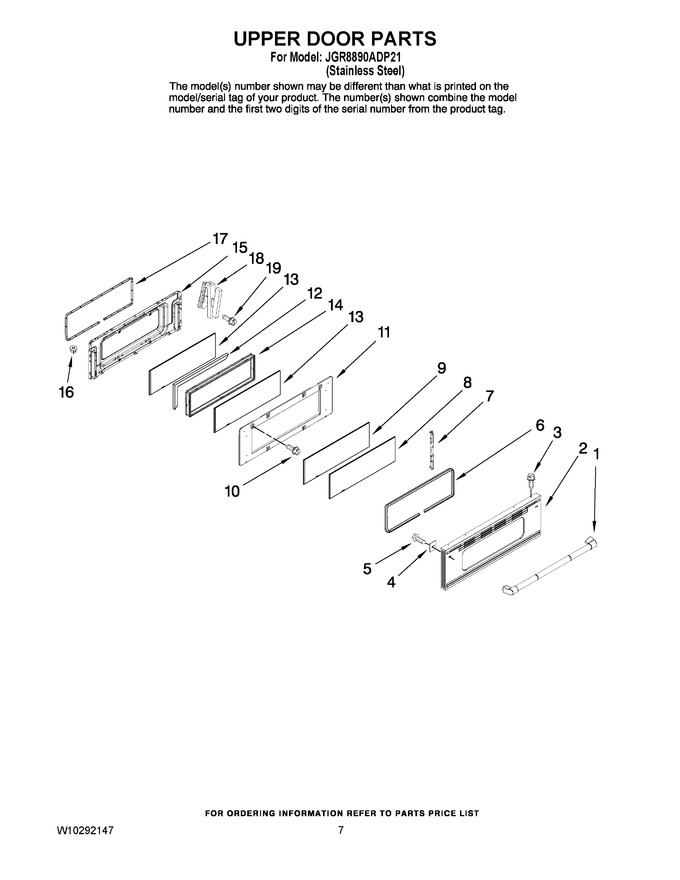

    View Diagram in Separate Window     Print Icon   Print Part List
