SELECT A DIAGRAM

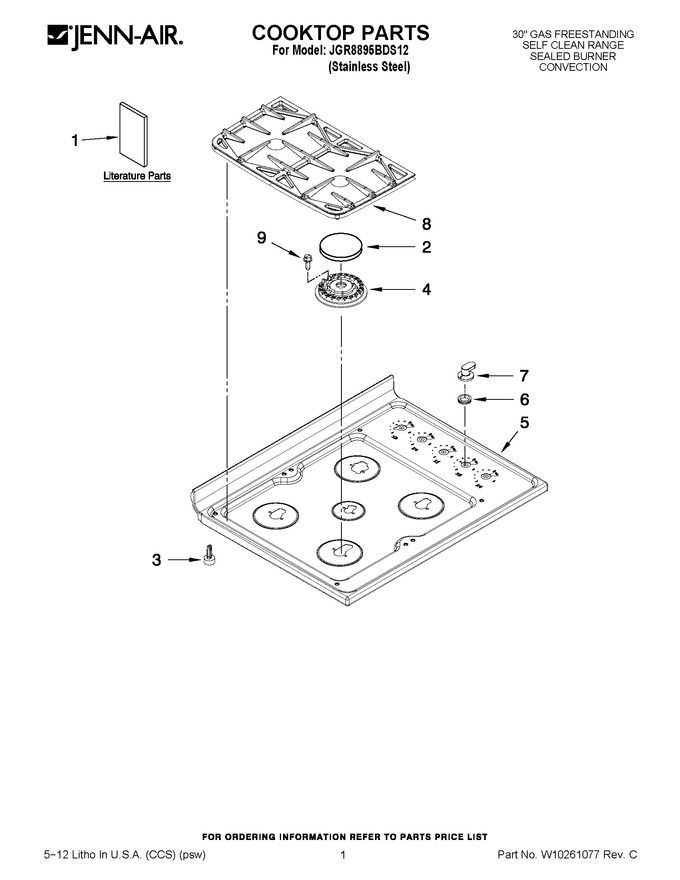

01 - Cooktop Parts


02 - Control Panel Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Upper Door Parts


06 - Lower Door Parts


07 - Rack Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10162492		Owners Manual Brochure, Tips		Appelez-nous	-
1	W10162494		Installation Instructions		Appelez-nous	-
1	W10065852		Safe Cooking (french)		Appelez-nous	-
1	9762761		Safe Cooking (english)		Appelez-nous	-
2	7504P204-60		Cap, Burner ((lf))		Appelez-nous	-
2	7504P241-60		Cap, Burner ((lr & Rr))		Appelez-nous	-
2	WP8284669		Cap, Burner (center)   (Replaces: 7504P202-60)			Immediately	$ 64.79
2	7504P165-60		Cap, Burner (rf)		Appelez-nous	-
3	W11189172		Glide, Main Top   (Replaces: 8016P022-60)			Immediately	$ 15.09
4	WPW10406797		Burner (12k, Rf)   (Replaces: 8286182)				$ 79.64
4	WPW10406243		Burner (6k, Center)   (Replaces: 8286181)			Immediately	$ 33.50
4	WPW10406283		Burner (lr/rr)   (Replaces: W10194076)				$ 66.87
4	WPW10406878		Burner (17k, Lf)   (Replaces: 8286183)			Immediately	$ 92.12
5	W10191074		Cooktop (blk)		Appelez-nous	-
6	8285469		Grommet, Knob				$ 45.00
7	W10183665		Knob, Control				$ 20.17
8	7518P455-60		Grate, Burner (incl. Bumpers)		Appelez-nous	-
9	WP3368921		Screw   (Replaces: 3368921)			Immediately	$ 6.42

    View Diagram in Separate Window       Print Part List
