SELECT A DIAGRAM

01 - Body


02 - Door/drawer


03 - Gas Controls


04 - Oven/base


05 - Top Assembly


06 - Wiring Information

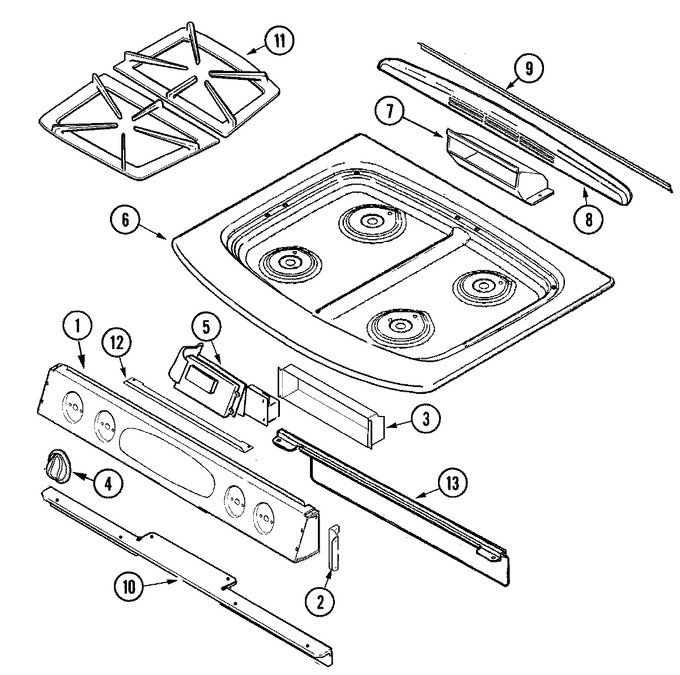

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	71003201		Screw W/washer	10	Appelez-nous	-
1	74005741		Control Panel Assy (bsq)	10	Appelez-nous	-
2	74005729		Bracket, Control Panel	10	Appelez-nous	-
2	WP98008545		Screw (8abx1/2``-blk)   (Replaces: 790448)	10			$ 15.94
3	WP74004005		Screw   (Replaces: 7101P349-60)	10			$ 6.95
3	74005755		Insulator, Control	10	Appelez-nous	-
4	74006009		Knob, Valve (bsq)	10	Appelez-nous	-
5	74011564		Harness, Main	22			$ 116.84
5	74006387		Clock W/harness	10	Appelez-nous	-
5	74007484		Harness, Pedestal	17	Appelez-nous	-
5	74007483		Harness, Sensor Lock Logic	17			$ 31.55
5	74006171		Harness, Sensor/lock	12	Appelez-nous	-
5	74005874		Harness, Sensor/lock	10	Appelez-nous	-
5	74005873		Harness, Control/p9	10	Appelez-nous	-
5	74005996		Harness, Control	10	Appelez-nous	-
6	74006003		Top, Main (bsq)	10	Appelez-nous	-
7	3601F221-45		Baffle, Vent Cover	10			$ 28.30
7	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
8	74006006		Cover, Vent (taupe)	10	Appelez-nous	-
8	WP59002061		Screw (6abx3/8-sn)   (Replaces: 74004288)	10			$ 6.98
9	7201P061-60		Gasket	10			$ 4.83
10	74005756		Support, Control Panel	10	Appelez-nous	-
10	W11233072		Screw (8bx3/8-ni)   (Replaces: 7101P338-60)	10		Immediately	$ 12.62
11	74006012		Grate (taupe)	10	Appelez-nous	-
11	74006015		Grate (taupe)	10	Appelez-nous	-
12	74005877		Bracket, Top Support	10	Appelez-nous	-
13	WP74004005		Screw   (Replaces: 7101P349-60)	10			$ 6.95
13	74005999		Shield, Control	10	Appelez-nous	-
14	74007136		Guide, Cooking (trilingual)	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
