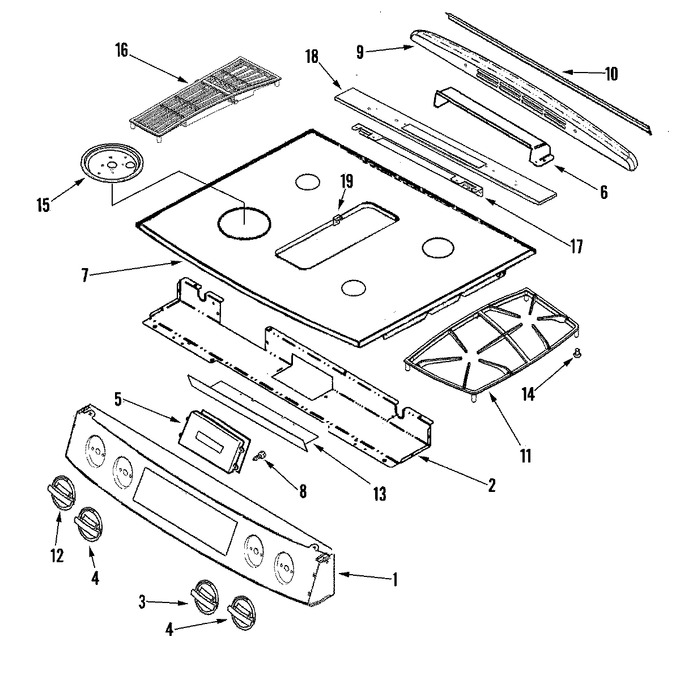

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74011744 | Control Panel/switch Asy (blk) | 10 |
|
- | ||||
| 2 | 74011870 | Support, Control Panel | 10 |
|
- | ||||
| 3 | WP74011664 | Knob, Burner (smr) (Replaces: 74011664) | 10 |
|
$ 44.58 | ||||
| 4 | WP74011666 | Knob, Burner (Replaces: 74011666) | 10 |
|
Immediately | $ 27.57 | |||
| 5 | WP8507P236-60 | Control (Replaces: 74011872) | 10 |
|
$ 352.38 | ||||
| 6 | 3601F221-45 | Baffle, Vent Cover | 10 |
|
$ 28.30 | ||||
| 7 | W10201492 | Glass Top Assy (blk) | 11 |
|
- | ||||
| 7 | 74011746 | Glass Top Asy (blk) | 10 |
|
- | ||||
| 8 | WP74004005 | Screw, 6-32 X 5/16`` (Replaces: 74004005) | 10 |
|
$ 6.95 | ||||
| 9 | 74011826 | Cover, Vent (blk) | 10 |
|
- | ||||
| 10 | 7201P061-60 | Gasket | 10 |
|
$ 4.83 | ||||
| 11 | 74011740 | Grate (blk/lt) | 10 |
|
$ 57.10 | ||||
| 11 | 74011739 | Grate (blk/rt) | 10 |
|
- | ||||
| 12 | WP74011665 | Knob, Burner (dual) (Replaces: 74011665) | 10 |
|
$ 41.58 | ||||
| 13 | 74011825 | Insulator, Shield | 10 |
|
- | ||||
| 14 | W10919249 | Bumper, Grate Bottom (Replaces: 74007356) | 10 |
|
Immediately | $ 11.30 | |||
| 14 | W10841140 | Sealer, Rtv Clear (Replaces: M0275597) | 10 |
|
Immediately | $ 24.92 | |||
| 15 | 74011873 | Bowl, Burner (blk) | 10 |
|
- | ||||
| 16 | 74011875 | Grill, Air (blk) | 10 |
|
$ 90.55 | ||||
| 17 | 74011876 | Shield, Main Top | 10 |
|
- | ||||
| 18 | 74011877 | Cover, Trim (blk) | 10 |
|
- | ||||
| 19 | 74010860 | Locator, Grate | 10 |
|
$ 9.06 |
