01 - Oven Parts


02 - Oven Door Parts


03 - Internal Oven Parts


04 - Control Panel Parts


05 - Optional Parts

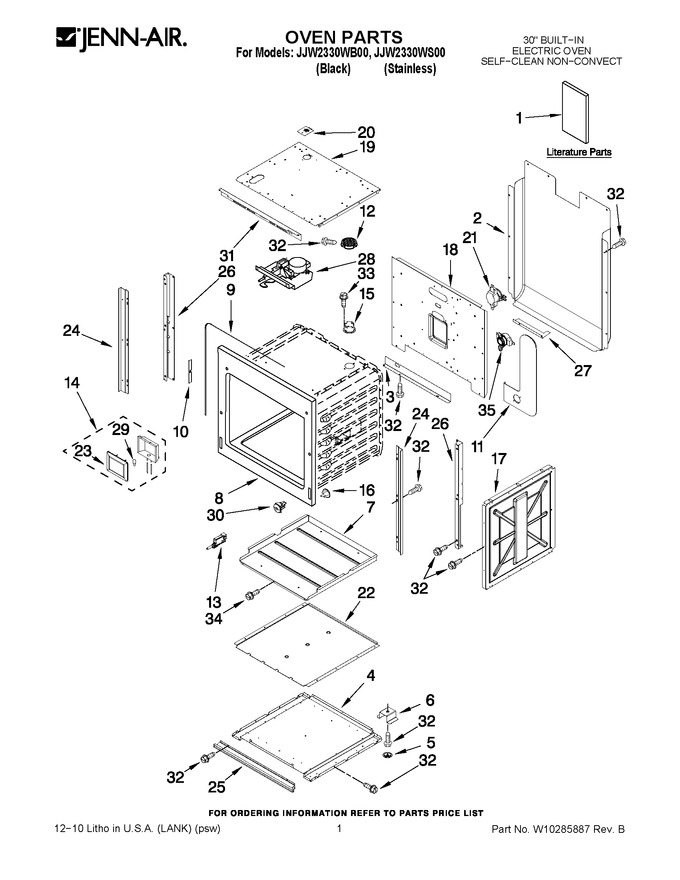

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9762761		Brochure, Tips Safe Cooking (english)		Appelez-nous	-
1	W10221394		Owners Manual		Appelez-nous	-
1	W10213733		Tech Sheet (english)		Appelez-nous	-
1	W10213742		Tech Sheet (french)		Appelez-nous	-
1	W10221386		Installation Instructions		Appelez-nous	-
1	W10065852		Brochure, Tips Safe Cooking (french)		Appelez-nous	-
2	2624F043-51		Back, Main		Appelez-nous	-
3	W10254041		Baffle, Rear Lower		Appelez-nous	-
4	W10280327		Panel, Bottom				$ 256.81
5	8038P035-60		Foot, Plastic (4)				$ 20.82
6	W10213759		Support, Air Channel		Appelez-nous	-
7	3401F079-45		Pan, Hidden Bake		Appelez-nous	-
8	W10175987		Frame, Front		Appelez-nous	-
9	W10213818		Gasket				$ 63.05
10	W10176218		Retainer, Gasket				$ 8.11
11	4006W217-45		Assy., Box Vent		Appelez-nous	-
12	8034P008-60		Screen, Smoke Elm.				$ 25.43
13	W10213744		Switch, Micro		Appelez-nous	-
14	W10175989		Assembly, Light				$ 95.43
15	8026P065-60		Tube, Vent				$ 21.38
16	74009408		Button, Plug (thermostat)   (Replaces: 7718P033-60)				$ 5.87
17	W10175995		Panel, Side		Appelez-nous	-
18	W10213724		Retainer, Rear Insulation		Appelez-nous	-
19	W10175998		Pnl, Top Retainer		Appelez-nous	-
20	W10213792		Cover, Vent				$ 140.20
21	WP7403P899-60		Switch, Hi Limit   (Replaces: 7403P899-60)			Immediately	$ 181.29
22	W10280325		Channel, Btm Air		Appelez-nous	-
23	WP74004607		Lens   (Replaces: W10187003)				$ 20.09
24	W10209049		Trim, Side				$ 75.23
25	W10238700		Trim, Bottom Vent (black)				$ 150.90
25	WPW10176036		Trim, Bottom Vent (stainless)   (Replaces: W10176036)				$ 171.85
26	W10277424		Bkt, Reinforcement (right Side)				$ 33.58
26	W10277423		Bkt, Reinforcement (left, Side)				$ 35.20
27	W10186984		Cover, Rear		Appelez-nous	-
28	WPW10213755		Latch, Door   (Replaces: W10213755)				$ 316.35
29	WPW10169757		Bulb, Oven   (Replaces: W10169757)			Immediately	$ 42.64
30	W10213745		Frame, Micro Sw				$ 8.42
31	W10176006		Trim, Cntrl Panel				$ 222.71
32	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
33	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 6.26
34	WP489464		Screw   (Replaces: W10236129)			Immediately	$ 7.05
35	W10277609		Switch, Oven Limit   (Replaces: 7403P987-60)				$ 186.67
NI	W10186989		Insulation, Wrap		Appelez-nous	-
NI	W10213750		Insulation, Back		Appelez-nous	-
