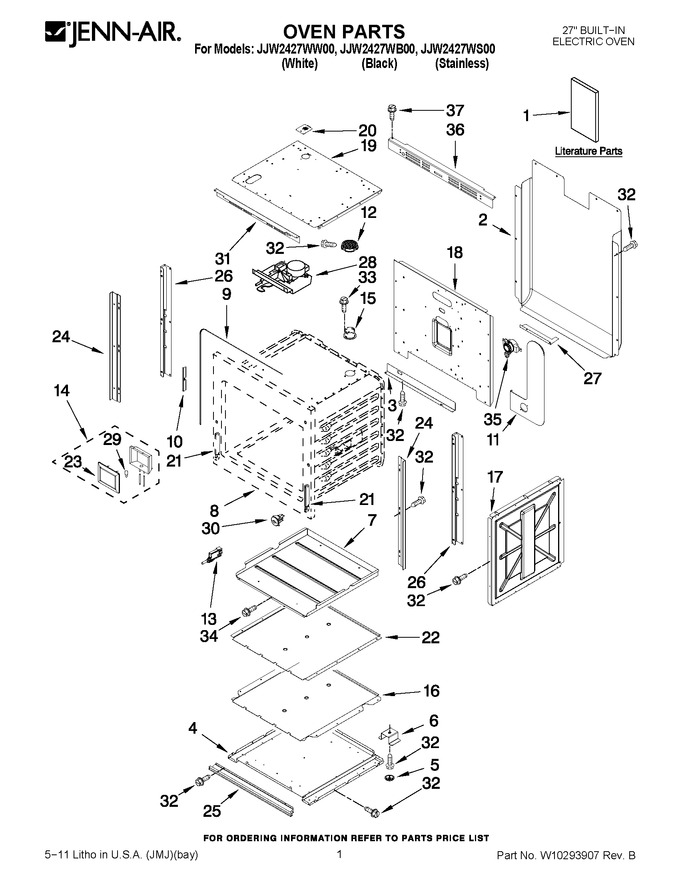

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10213733		Tech Sheet (english)		Appelez-nous	-
1	W10221386		Installation Instructions		Appelez-nous	-
1	W10221394		Owners Manual		Appelez-nous	-
1	W10065852		Brochure, Tips Safe Cooking (french)		Appelez-nous	-
1	W10213742		Tech Sheet (french)		Appelez-nous	-
1	9762761		Brochure, Tips Safe Cooking (english)		Appelez-nous	-
2	2624F043-51		Back, Main		Appelez-nous	-
3	3601F343-51		Baffle, Rear Lower		Appelez-nous	-
4	W10280326		Panel, Bottom		Appelez-nous	-
5	8038P035-60		Foot, Plastic (4)				$ 20.82
6	W10213759		Support, Air Channel		Appelez-nous	-
7	3401F079-45		Pan, Hidden Bake		Appelez-nous	-
8	W10186993		Frame, Front		Appelez-nous	-
9	W10213819		Gasket				$ 119.94
10	W10176218		Retainer, Gasket				$ 8.11
11	4006W218-45		Box, Vent		Appelez-nous	-
12	8034P008-60		Screen, Smoke Elm.				$ 25.43
13	W10286173		Switch, Micro				$ 64.24
14	W10175989		Assembly, Light				$ 95.43
15	8026P066-60		Tube, Vent		Appelez-nous	-
16	W10280323		Channel, Bottom		Appelez-nous	-
17	W10175995		Panel, Side		Appelez-nous	-
18	W10213725		Retainer, Rear Insulation		Appelez-nous	-
19	W10175999		Pnl, Top Retainer		Appelez-nous	-
20	W10213792		Cover, Vent				$ 140.20
21	W10175993		Receiver, Hinge				$ 44.06
22	W10176004		Support, Top Cntl				$ 14.32
23	WP74004607		Lens   (Replaces: W10187003)				$ 20.09
24	W10277586		Trim, Side				$ 64.43
25	W10176037		Trim, Bottom Vent (stainless)				$ 157.91
25	W10238701		Trim, Bottom Vent (black)				$ 139.89
26	W10277424		Brkt., Reinforce (right Side)				$ 33.58
26	W10277423		Brkt., Reinforce (left Side)				$ 35.20
27	W10186984		Cover, Rear		Appelez-nous	-
28	WPW10213755		Latch, Lock   (Replaces: W10213755)				$ 316.35
29	N/P		Bulb, Oven		Appelez-nous	-
30	W10213745		Frame, Micro Sw				$ 8.42
31	W10176007		Trim, Cntl Pnl		Appelez-nous	-
32	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
33	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 6.26
34	W10236043		Screw				$ 65.26
35	WP7403P899-60		Switch, Hi Limit   (Replaces: 7403P899-60)			Immediately	$ 181.29
36	W10176007		Trim, Control Panel (top)		Appelez-nous	-
37	WPY706189		Screw (4)   (Replaces: 7101P427-60)			Immediately	$ 6.47
NI	W10186990		Insulation, Wrap		Appelez-nous	-
NI	W10213747		Insulation, Back		Appelez-nous	-
