01 - Oven Parts
02 - Oven Door Parts
03 - Internal Oven Parts

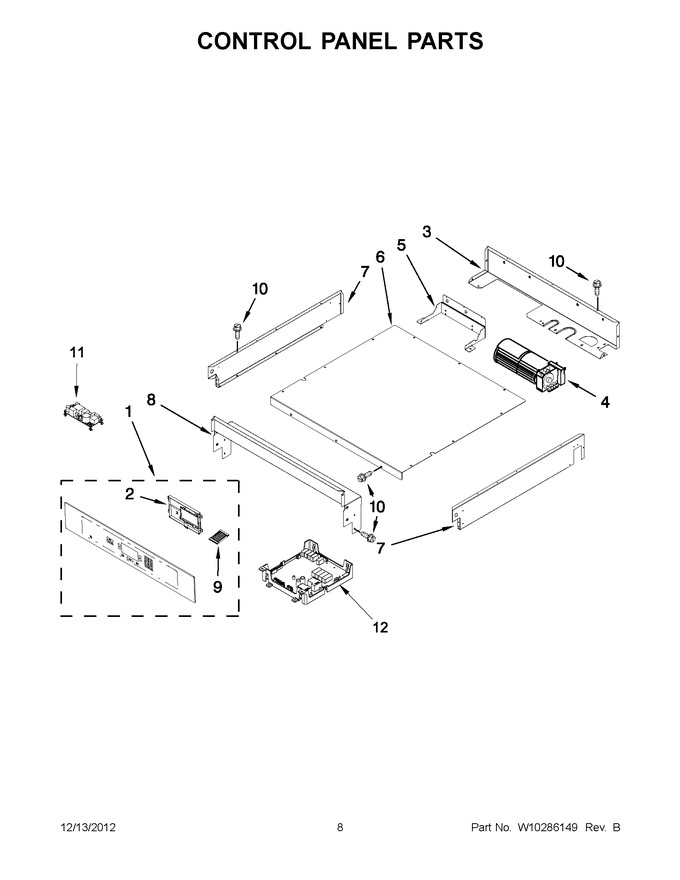

04 - Control Panel Parts
05 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10401265 | Assembly, Control Panel (Replaces: W10344130) |
|
$ 1,957.88 | |||||
| 2 | W10186901 | Assembly, User Interface |
|
- | |||||
| 3 | W10187048 | Panel, Control Box Rear |
|
- | |||||
| 4 | WPW10273667 | Blower (Replaces: W10273667) |
|
Immediately | $ 269.68 | ||||
| 5 | W10186997 | Bracket, Cooling Fan |
|
$ 73.49 | |||||
| 6 | W10176180 | Panel, Control Box Top |
|
- | |||||
| 7 | W10176003 | Panel, Control Box Right Hand |
|
- | |||||
| 7 | W10176002 | Panel, Control Box Left Hand |
|
- | |||||
| 8 | W10176004 | Support, Top Control |
|
$ 14.32 | |||||
| 9 | W10175829 | Cable, User Interface |
|
- | |||||
| 10 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 11 | WPW10286791 | Supply, Power (Replaces: W10286791) |
|
Immediately | $ 251.06 | ||||
| 12 | W10292566 | Manager, Appliance |
|
$ 376.13 |
