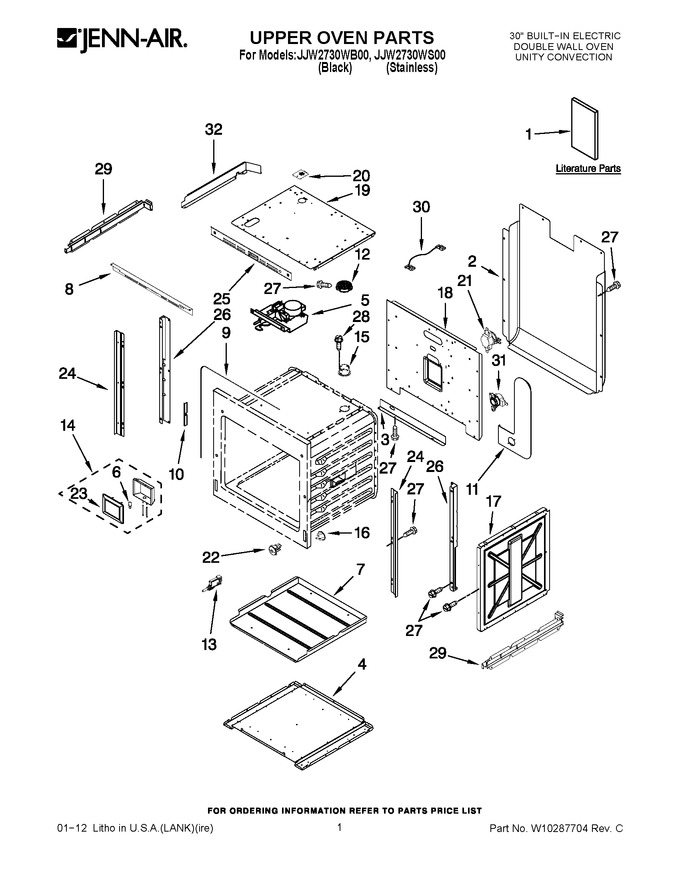

01 - Upper Oven Parts
02 - Lower Oven Parts
03 - Upper Oven Door Parts
04 - Lower Oven Door Parts
05 - Internal Oven Parts
06 - Control Panel Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9762761 | Brochure, Tips Safe Cooking (english) |
|
- | |||||
| 1 | W10221394 | Use & Care Guide |
|
- | |||||
| 1 | W10213733 | Tech Sheet (english) |
|
- | |||||
| 1 | W10213742 | Tech Sheet (french) |
|
- | |||||
| 1 | W10221386 | Installation Instructions |
|
- | |||||
| 1 | W10217587 | Tech Sheet (energy Guide) |
|
- | |||||
| 1 | W10065852 | Brochure, Tips Safe Cooking (french) |
|
- | |||||
| 2 | 2624F051-51 | Back, Main |
|
- | |||||
| 3 | W10254160 | Baffle, Rear |
|
- | |||||
| 4 | W10280327 | Panel, Bottom |
|
$ 256.81 | |||||
| 5 | WPW10213755 | Latch, Door (Replaces: W10213755) |
|
$ 316.35 | |||||
| 6 | WPW10169757 | Bulb, Oven (Replaces: W10169757) |
|
Immediately | $ 42.64 | ||||
| 7 | 3401F079-45 | Pan, Hidden Bake |
|
- | |||||
| 8 | W10176006 | Trim, Ctrl Pnl Top |
|
$ 222.71 | |||||
| 9 | W10213818 | Gasket |
|
$ 63.05 | |||||
| 10 | W10176218 | Retainer, Gasket |
|
$ 8.11 | |||||
| 11 | 4006W217-45 | Assy., Box Vent |
|
- | |||||
| 12 | 8034P008-60 | Screen, Smoke Elm. |
|
$ 25.43 | |||||
| 13 | W10213744 | Switch, Micro |
|
- | |||||
| 14 | W10175989 | Assembly, Light |
|
$ 95.43 | |||||
| 15 | 8026P065-60 | Tube, Vent |
|
$ 21.38 | |||||
| 16 | 74009408 | Button, Plug (thermostat) (Replaces: 7718P033-60) |
|
$ 5.87 | |||||
| 17 | W10175995 | Panel, Side |
|
- | |||||
| 18 | W10213724 | Retainer, Rear Insulation |
|
- | |||||
| 19 | W10175998 | Pnl, Top Retainer |
|
- | |||||
| 20 | W10213792 | Cover, Vent |
|
$ 140.20 | |||||
| 21 | WP7403P899-60 | Switch, Hi Limit (Replaces: 7403P899-60) |
|
Immediately | $ 181.29 | ||||
| 22 | W10213745 | Frame, Micro Sw |
|
$ 8.42 | |||||
| 23 | WP74004607 | Lens (Replaces: W10187003) |
|
$ 20.09 | |||||
| 24 | W10512902 | Trim, Side (Replaces: W10209051) |
|
$ 253.75 | |||||
| 25 | W10176014 | Trim, Cntrl Panel |
|
$ 86.57 | |||||
| 26 | W10277423 | Bkt, Reinforcement (left, Side) |
|
$ 35.20 | |||||
| 26 | W10277424 | Bkt, Reinforcement (right Side) |
|
$ 33.58 | |||||
| 27 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 28 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 6.26 | |||||
| 29 | 3807F669-51 | Support, Oven (2) |
|
$ 10.44 | |||||
| 30 | W10282791 | Jumper, Thermal Secondary |
|
$ 16.66 | |||||
| 31 | W10277609 | Switch, Oven Light (Replaces: 7403P987-60) |
|
$ 186.67 | |||||
| 32 | W10187018 | Baffle, Middle Dbl |
|
- | |||||
| NI | W10213750 | Insulation, Back |
|
- | |||||
| NI | W10186989 | Insulation, Wrap |
|
- |
