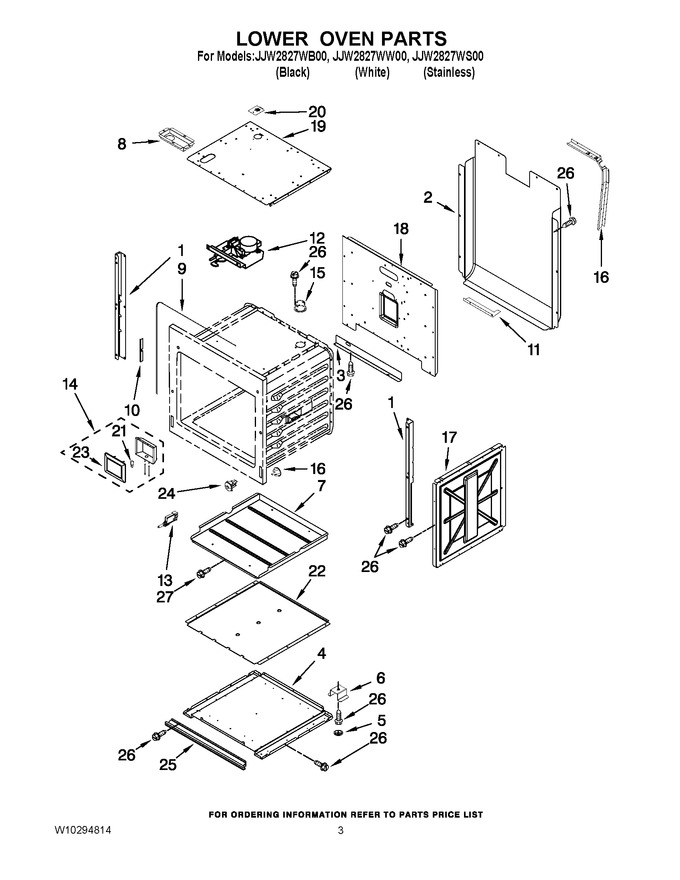

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10277424		Bkt, Reinforcement (right Side)				$ 33.58
1	W10277423		Bkt, Reinforcement (left, Side)				$ 35.20
2	2624F043-51		Back, Main		Appelez-nous	-
3	W10254041		Baffle, Rear		Appelez-nous	-
4	W10280326		Panel, Bottom		Appelez-nous	-
5	8038P035-60		Foot, Plastic				$ 20.82
6	W10213759		Support, Air Channel		Appelez-nous	-
7	3401F079-45		Pan, Hidden Bake		Appelez-nous	-
8	4006F236-45		Box, Lower Vent		Appelez-nous	-
9	W10213819		Gasket				$ 119.94
10	W10176218		Retainer, Gasket				$ 8.11
11	W10186984		Cover, Rear		Appelez-nous	-
12	WPW10213755		Latch, Door   (Replaces: W10213755)				$ 316.35
13	W10286173		Switch, Micro				$ 64.24
14	W10175989		Assembly, Light				$ 95.43
15	8026P064-60		Tube, Vent		Appelez-nous	-
16	W10253684		Bracket, Oven Back		Appelez-nous	-
17	W10175995		Panel, Side		Appelez-nous	-
18	W10255437		Retainer, Rear Insulation		Appelez-nous	-
19	W10175999		Pnl, Top Retainer		Appelez-nous	-
20	4005F721-45		Cover, Vent				$ 29.09
21	WPW10169757		Bulb, Oven   (Replaces: W10169757)			Immediately	$ 42.64
22	W10280323		Channel, Btm Air Bake Element		Appelez-nous	-
23	WP74004607		Lens   (Replaces: W10187003)				$ 20.09
24	W10213745		Frame, Micro Sw				$ 8.42
25	W10238701		Trim, Bottom Vent (black)				$ 139.89
25	W10176144		Trim, Bottom Vent (white)		Appelez-nous	-
25	W10176037		Trim, Bottom Vent (stainless)				$ 157.91
26	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
27	WP489464		Screw   (Replaces: W10236129)			Immediately	$ 7.05
NI	W10186990		Insulation, Wrap		Appelez-nous	-
NI	W10213747		Insulation, Back		Appelez-nous	-
