01 - Upper Oven Parts
02 - Lower Oven Parts
03 - Upper Oven Door Parts
04 - Lower Oven Door Parts
05 - Internal Oven Parts
06 - Control Panel Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

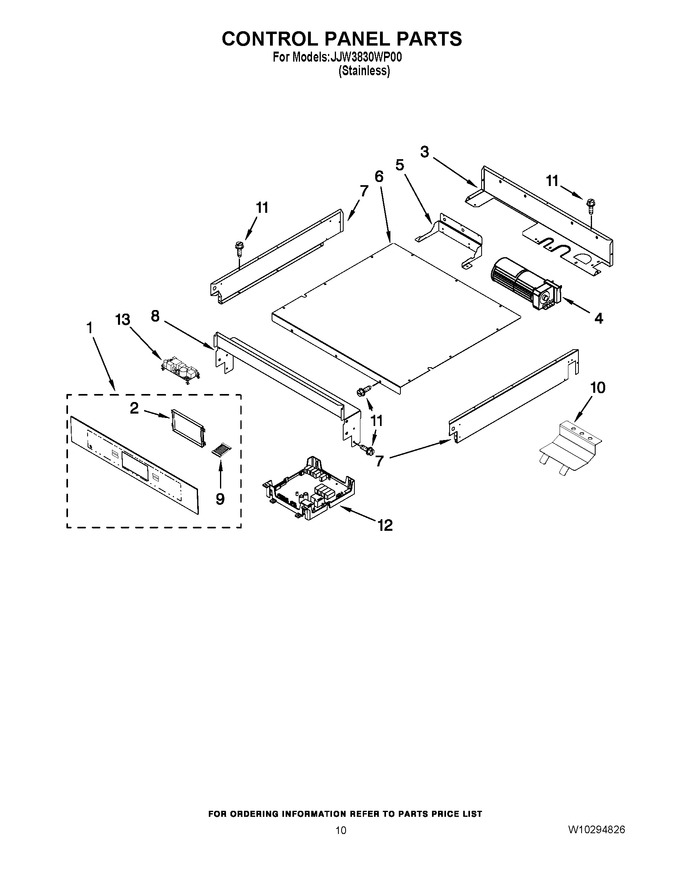

| 1 | W10344142 | Assembly, Control Panel |
|
- | |||||
| 2 | W10344082 | Assy., Ui Extended |
|
$ 560.32 | |||||
| 3 | W10187048 | Panel, Control Box Rear |
|
- | |||||
| 4 | WPW10273667 | Blower (upper) (Replaces: W10273667) |
|
Immediately | $ 269.68 | ||||
| 4 | WPW10273666 | Blower (lower) (Replaces: W10273666) |
|
Immediately | $ 293.73 | ||||
| 5 | W10186997 | Bracket, Cooling Fan Upper |
|
$ 73.49 | |||||
| 5 | W10187016 | Bracket, Cooling Fan Lower |
|
$ 88.04 | |||||
| 6 | W10176180 | Panel, Control Box Top |
|
- | |||||
| 7 | W10176003 | Panel, Control Box (right Side) |
|
- | |||||
| 7 | W10176002 | Panel, Control Box (left Side) |
|
- | |||||
| 8 | W10176004 | Support, Top Cntrl |
|
$ 14.32 | |||||
| 9 | W10175829 | Cable |
|
- | |||||
| 10 | W10176243 | Bracket, Cover (lwr Cooling Fan) |
|
- | |||||
| 11 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 12 | W10292566 | Mgr, Appliance |
|
$ 376.13 | |||||
| 13 | WPW10286791 | Control, Elec (Replaces: W10286791) |
|
Immediately | $ 251.06 |
