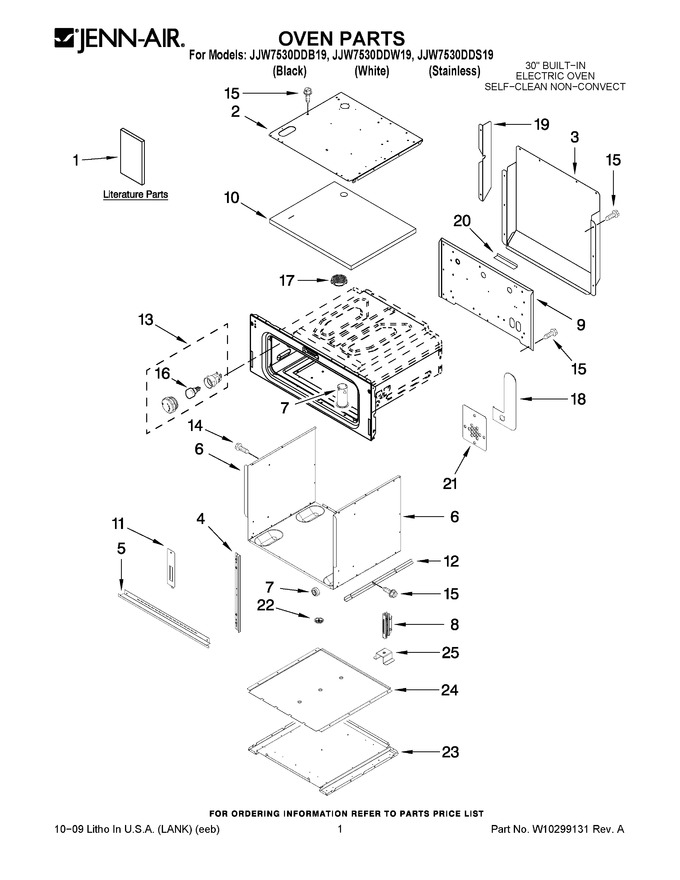

01 - Oven Parts


02 - Oven Door Parts


03 - Internal Oven Parts


04 - Control Panel Parts


05 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8010P485-60		Installation Instructions		Appelez-nous	-
1	W10169645		Owners Manual		Appelez-nous	-
1	9762761		Brochure Tips (safe Cooking) (english)		Appelez-nous	-
1	W10065852		Brochure, Tips Safe Cooking (french)		Appelez-nous	-
1	8119P262-60		Wiring Diagram (english)		Appelez-nous	-
1	8119P263-60		Wiring Diagram (french)		Appelez-nous	-
2	2618F226-51		Top, Outer		Appelez-nous	-
3	2624W054-51		Back, Outer		Appelez-nous	-
4	7744P415-60		Trim, Side		Appelez-nous	-
5	3608F099-70		Trim, Oven				$ 68.63
6	2618F174-51		Panel, Side		Appelez-nous	-
7	8026P077-60		Tube, Vent		Appelez-nous	-
8	WP74011337		Receptacle, Hinge Assembly   (Replaces: 7106P127-60)				$ 45.50
9	2624F088-51		Retainer, Insul.		Appelez-nous	-
10	7002P410-60		Insulation, Top/back		Appelez-nous	-
11	3605F331-70		Plate, Hinge Trap		Appelez-nous	-
12	3807F685-51		Bottom, Brace		Appelez-nous	-
13	7407P179-60		Assy., Light		Appelez-nous	-
14	W10828565		Screw   (Replaces: 7101P635-60)				$ 6.70
15	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
16	WP74009925		Bulb, Oven   (Replaces: 899138-001)			Immediately	$ 20.37
17	8034P008-60		Screen, Smoke Elimin.				$ 25.43
18	4006W217-45		Box, Vent		Appelez-nous	-
19	3601F352-51		Baffle, Rear		Appelez-nous	-
20	4005P712-51		Cover, Rear		Appelez-nous	-
21	4005F726-45		Cover, Vent		Appelez-nous	-
22	8038P035-60		Foot, Plastic				$ 20.82
23	2624F079-51		Panel, Bottom		Appelez-nous	-
24	3818F108-51		Channel, Btm Air		Appelez-nous	-
25	3807F706-51		Support, Air Ch		Appelez-nous	-
NI	7002P409-60		Insulation, Frt		Appelez-nous	-
NI	7002P410-60		Insulation, Wrap		Appelez-nous	-
NI	7002P412-60		Insulation, Back		Appelez-nous	-
NI	7002P374-60		Insulation, Btm		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
