Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 74008366 Cover, Top 10 Appelez-nous -
1 WP90767 Screw   (Replaces: Y700502) 10 In-Stock Immediately $ 7.04

2 74011385 Panel, Top Retainer (upr-30) 15 Appelez-nous -
2 74008428 Panel, Top Retainer 30`` 10 Appelez-nous -
2 2618F226-51 Panel, Top Retainer 17 Appelez-nous -
2 WP90767 Screw   (Replaces: Y700502) 10 In-Stock Immediately $ 7.04

2 74011382 Panel, Top Retainer (upr-27) 10 Appelez-nous -
3 WP90767 Screw   (Replaces: Y700502) 10 In-Stock Immediately $ 7.04

3 74008605 Panel, Back 10 Appelez-nous -
4 74008598 Trim, Side (blk) 10 Appelez-nous -
4 WP90767 Screw   (Replaces: Y700502) 10 In-Stock Immediately $ 7.04

5 74008403 Trim, Bottom (blk) 10 Appelez-nous -
5 W11233072 Screw (8ab1/2-ni)   (Replaces: 74001530) 10 In-Stock Immediately $ 12.62

6 74008593 Panel, Side 10 Appelez-nous -
6 74011390 Panel, Side 10 Appelez-nous -
6 WP90767 Screw   (Replaces: Y700502) 10 In-Stock Immediately $ 7.04

7 WP7403P899-60 Switch, Hi-limit   (Replaces: Y702548) 10 In-Stock Immediately $ 181.29

7 WP7450P108-60 Swtch-lite   (Replaces: W10171550) 18 In-Stock Immediately $ 138.24

7 WP90767 Screw   (Replaces: Y700502) 10 In-Stock Immediately $ 7.04

7 WP7403P899-60 Switch, High Limit   (Replaces: 74009837) 12 In-Stock Immediately $ 181.29

8 WP74011337 Receptacle, Hinge   (Replaces: 74010285) 13 Special Order $ 45.50

8 WP74011337 Receptacle, Hinge   (Replaces: 74008377) 10 Special Order $ 45.50

8 WP4159193 Screw (10-24x5/16-ni)   (Replaces: 7101P282-60) 10 Special Order $ 4.29

9 74011388 Retainer, Insul (rear Upr 27) 10 Appelez-nous -
9 WP90767 Screw   (Replaces: Y700502) 10 In-Stock Immediately $ 7.04

9 74008594 Retainer, Insulation (rear) 10 Appelez-nous -
10 74010091 Insulation, Back   (Replaces: 74008592) 10 Special Order $ 73.67

11 74008406 Panel, Bottom (30``) 10 Appelez-nous -
11 WP90767 Screw   (Replaces: Y700502) 10 In-Stock Immediately $ 7.04

12 74008590 Insulation, Wrap 10 Appelez-nous -
13 74008619 Channel, Air 10 Appelez-nous -
14 74008620 Channel, Air (main) 10 Appelez-nous -
15 74008352 Channel, Bottom Air 10 Appelez-nous -
16 74008615 Support, Cavity 10 Appelez-nous -
17 74008616 Brace, Cavity Support 10 Appelez-nous -
18 74008586 Insulation, Bottom 10 Appelez-nous -
19 74008591 Insulation, Top 10 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

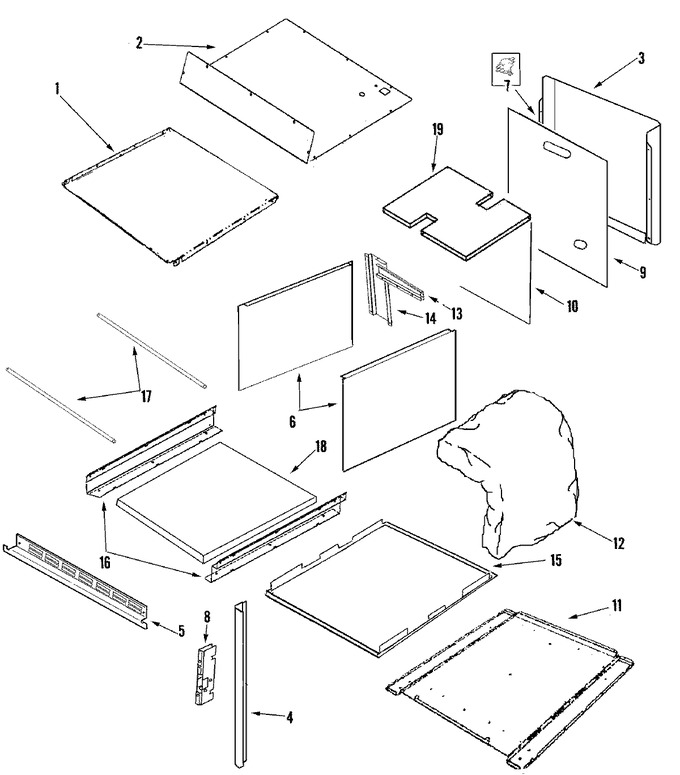

Diagram for JJW7530DDW
