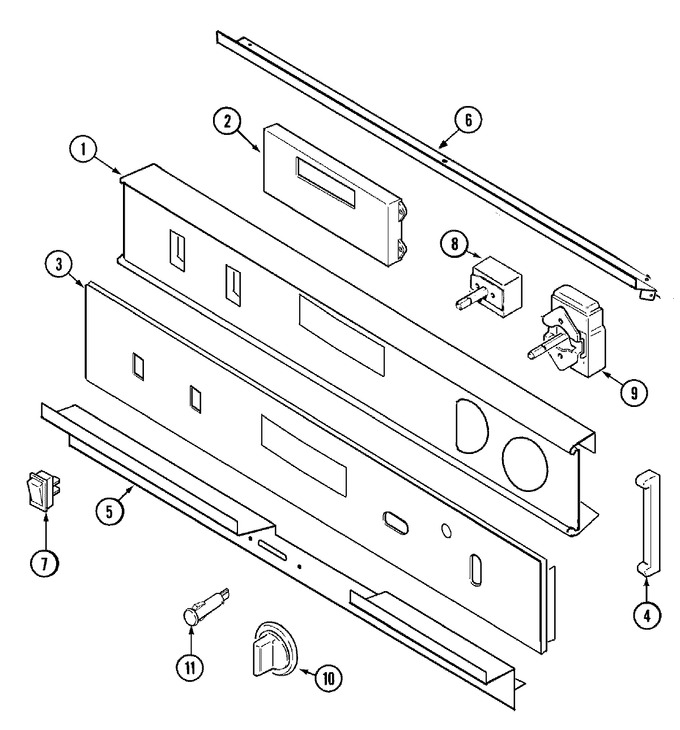

01 - Body
02 - Control Panel
03 - Door (upper&lower)
04 - Internal Controls
05 - Oven
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74004693 | Panel, Control (blk) | 10 |
|
- | ||||
| 1 | WPY706189 | Screw (Replaces: Y706189) | 10 |
|
Immediately | $ 6.47 | |||
| 2 | 74004718 | Clock | 10 |
|
- | ||||
| 2 | 702731 | Screw | 10 |
|
- | ||||
| 2 | Y705143 | Insulator | 10 |
|
- | ||||
| 3 | 12001405 | Tape Supt (control Panel) Kit | 10 |
|
- | ||||
| 3 | 74006862 | Switch, Membrane Asy (blk) | 13 |
|
- | ||||
| 3 | 74006440 | Switch, Membrane Asy (blk) | 10 |
|
- | ||||
| 4 | 71001794 | End Cap, Panel (blk) | 10 |
|
- | ||||
| 4 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 | |||
| 5 | 71001804 | Trim, Control Panel | 10 |
|
- | ||||
| 6 | 74007581 | Support, Top Control | 14 |
|
- | ||||
| 6 | 71003405 | Support, Top | 10 |
|
- | ||||
| 7 | 7403P067-60 | Switch, Rocker (blk) (Replaces: 7403P102-60) | 10 |
|
$ 91.35 | ||||
| 8 | WP488234 | Screw (no.8-1/4``) (Replaces: 71002147) | 10 |
|
$ 6.07 | ||||
| 8 | 71001127 | Switch, Selector----na | 10 |
|
- | ||||
| 9 | 71002138 | Thermostat | 10 |
|
- | ||||
| 9 | WP488234 | Screw (no.8-1/4``) (Replaces: 71002147) | 10 |
|
$ 6.07 | ||||
| 10 | 71002411 | Knob, Thermostat/selector (blk | 10 |
|
- | ||||
| 11 | 74006447 | Indicator, Light | 10 |
|
- | ||||
| 12 | 74004701 | Harness, Senor/lock | 10 |
|
- | ||||
| 12 | 74004702 | Harness, Lock Switch | 10 |
|
- | ||||
| 13 | 74005475 | Guide, Cooking (trilingual) | 10 |
|
- | ||||
| 13 | 74005958 | Manual, Use & Care (tri) | 10 |
|
- |
