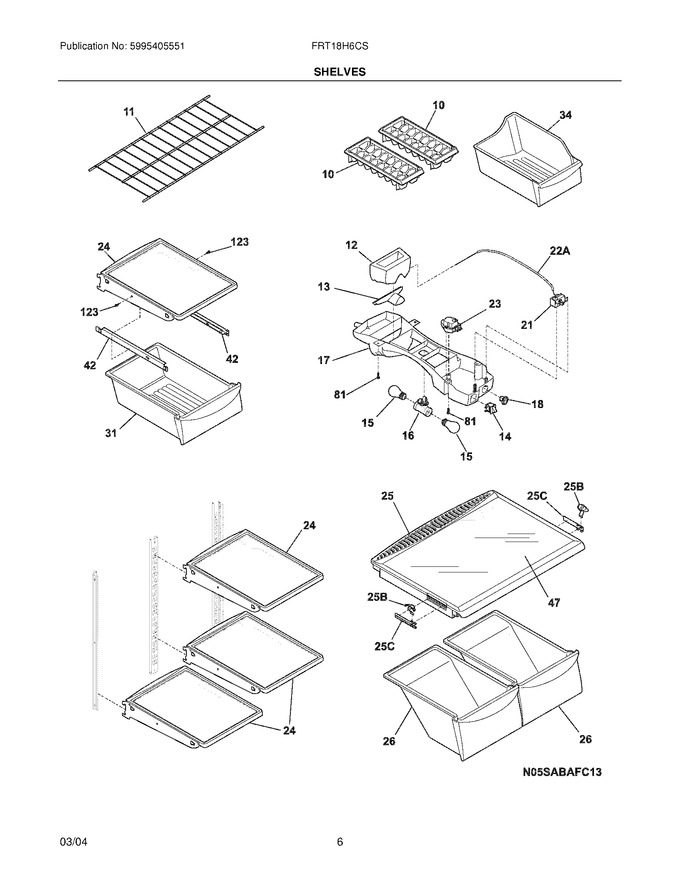

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	215667501		Tray,ice Cube ,plastic			Immediately	$ 6.07
11	240358002		Shelf-freezer,full Width		Appelez-nous	-
12	240545001		Diffuser,air ,top				$ 44.61
13	240362601		Diffuser-air,bottom			Immediately	$ 41.81
15	316538904		Light Bulb/lamp,a-15 ,clear ,40 W ,120 V,miniature   (Replaces: 240436702)			Immediately	$ 20.48
16	240364201		Socket-light/lamp,dual				$ 100.50
17	240352701		Control Box		Appelez-nous	-
18	240360801		Knob-temp Control				$ 43.95
24	241616607		Shelf-``spill-safe``,fixed   (Replaces: 240355210)				$ 146.81
25	240364787		Cover-crisper Pan   (Replaces: 240364714)			Immediately	$ 120.98
26	240337103		Pan-crisper,clear ,(2) ,no Graphics			Immediately	$ 148.35
31	240530811		Pan-meat,w/o Graphics ,clear   (Replaces: 240530803)			Immediately	$ 135.77
34	240385201		Container,ice Bin				$ 97.83
42	240365401		Track,meat Pan Hanger ,lh			Immediately	$ 51.26
42	240356501		Track,meat Pan Hanger ,rh			Immediately	$ 56.70
47	240350608		Insert-pan Cover,glass   (Replaces: 240350643)			Immediately	$ 45.50
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
123	215005101		Screw,hanger/rlr Mtg ,8-10 X 0.438   (Replaces: 215005100)				$ 14.89
22A	240468202		Tube,sensor Sleeve ,31 Inch ,plastic ,white   (Replaces: 240468201)				$ 9.10
25B	5304492617		Control-humidity   (Replaces: 240361201)			Immediately	$ 8.69
25C	5304492617		Damper,humidity Cont.   (Replaces: 240361301)			Immediately	$ 8.69
F14	241554901		Switch-light/lamp				$ 70.88
F21	241537103		Control-temperature   (Replaces: 5304421256)			Immediately	$ 72.31
F23	215846602		Timer-defrost   (Replaces: 240371001)			Immediately	$ 28.20
NI	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
NI	240388701		Wiring Harness,control Box			Immediately	$ 80.09
