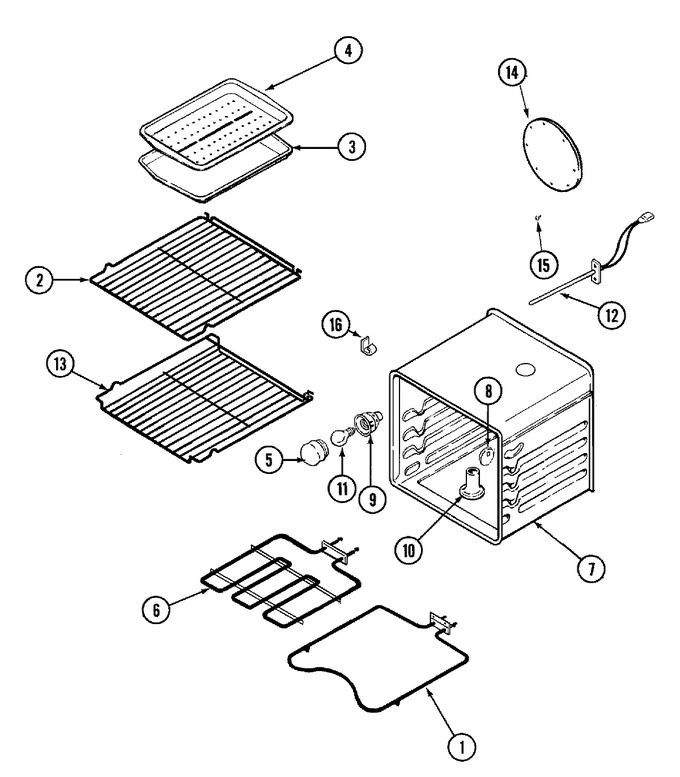

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door
04 - Internal Controls
05 - Oven
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10310258 | Element, Bake (Replaces: 71001638) | 10 |
|
Immediately | $ 136.74 | |||
| 1 | 71001395 | Screw | 10 |
|
- | ||||
| 2 | WPW10282527 | Rack, Oven (Replaces: 71001862) | 10 |
|
$ 149.26 | ||||
| 3 | Y3401F02019 | Pan, Broil | 10 |
|
- | ||||
| 4 | Y3413F01619 | Insert, Broil Pan | 10 |
|
- | ||||
| 5 | WP9781049 | Lens, Bulb (Replaces: 71001867) | 10 |
|
Immediately | $ 71.93 | |||
| 6 | 74004812 | Element, Broil | 10 |
|
- | ||||
| 7 | 71003005 | Oven Weld Assy. | 10 |
|
- | ||||
| 7 | WP7101P434-60 | Screw (Replaces: 71001394) | 10 |
|
$ 6.26 | ||||
| 7 | 71001403 | Washer, Alum | 10 |
|
- | ||||
| 8 | 702929 | Button, Plug | 10 |
|
- | ||||
| 9 | WP74011278 | Oven Light Assy. (Replaces: 71002427) | 10 |
|
$ 101.56 | ||||
| 10 | 71002419 | Tube, Vent | 10 |
|
- | ||||
| 11 | 8009 | Bulb-oven (Replaces: 7407P103-60) | 10 |
|
Immediately | $ 16.80 | |||
| 12 | 12001656 | Probe, Oven Sensor (Replaces: 71003083) | 10 |
|
Immediately | $ 39.55 | |||
| 13 | WPW10282527 | Rack, Oven (offset) (Replaces: 71001865) | 10 |
|
$ 149.26 | ||||
| 14 | 71002903 | Plate, Non-convect | 10 |
|
- | ||||
| 15 | WP74003976 | Screw, Shoulder (Replaces: 74003976) | 10 |
|
$ 6.47 | ||||
| 15 | WP74003976 | Washer (Replaces: 702592) | 10 |
|
$ 6.47 | ||||
| 16 | 71001170 | Clip, Oven | 10 |
|
- |
