SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door
04 - Internal Controls
05 - Oven
06 - Wiring Information
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:

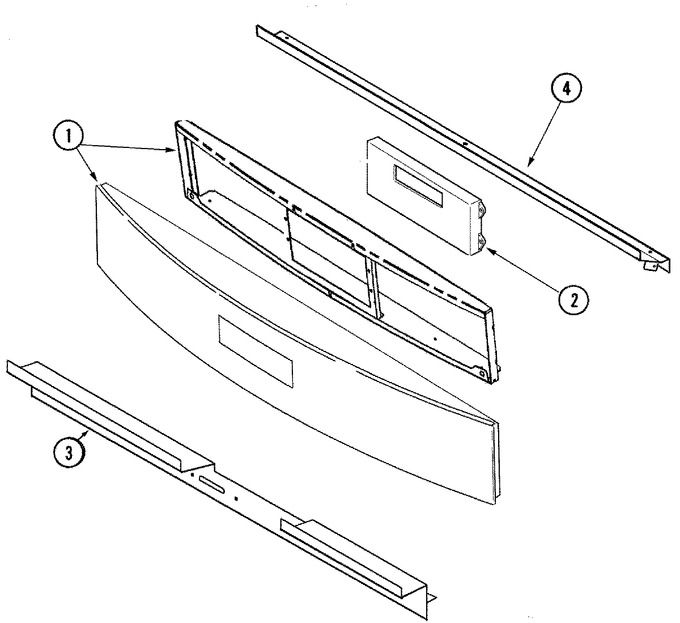

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74007041 | Panel, Control (blk) | 10 |
|
- | ||||
| 2 | WP71003424 | Clock (Replaces: 71003424) | 10 |
|
Immediately | $ 339.57 | |||
| 3 | 71001804 | Trim, Control Panel | 10 |
|
- | ||||
| 4 | 74007581 | Support, Top Control | 12 |
|
- | ||||
| 4 | WP98008545 | Screw (8abx1/2``-blk) (Replaces: 790448) | 10 |
|
$ 15.94 | ||||
| 4 | 74006816 | Support, Top Control | 10 |
|
- | ||||
| 4 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 | |||
| 5 | 74007064 | Harness, Upr Dr Sw. & Mtr | 10 |
|
- | ||||
| 5 | 71003404 | Harness, Control/relay Board | 10 |
|
- | ||||
| 5 | 71003403 | Harness, Touch Pad/clock | 10 |
|
- | ||||
| 5 | 71001798 | Harness, Wire Control (j2) | 10 |
|
- | ||||
| 5 | 74007034 | Harness, Upper Main | 10 |
|
- | ||||
| 5 | 74005199 | Harness, Sensor (lwr) | 10 |
|
$ 31.09 | ||||
| 6 | 74005858 | Manual, Use & Care (tri) | 10 |
|
- | ||||
| 6 | 74005475 | Guide, Cooking (trilingual) | 10 |
|
- |
