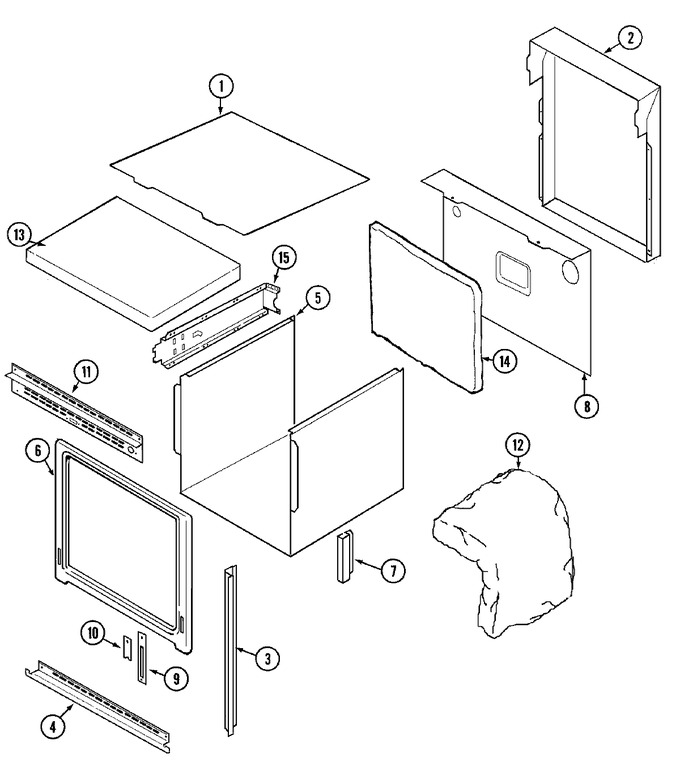

01 - Body
02 - Control Panel
03 - Door (upper & Lower)
04 - Internal Controls
05 - Oven
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 71001811 | Top, Oven (outer) | 10 |
|
- | ||||
| 1 | 71001885 | Panel, Top (inr-ctr) | 10 |
|
- | ||||
| 1 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 | |||
| 2 | 71001878 | Back, Outer (upr) | 10 |
|
- | ||||
| 2 | 71001883 | Back, Outer (lwr) | 10 |
|
- | ||||
| 3 | 71003618 | Trim, Side (lt-blk) | 13 |
|
- | ||||
| 3 | 71003410 | Trim, Side (rt-blk) | 10 |
|
- | ||||
| 3 | WPY706189 | Screw (Replaces: Y706189) | 10 |
|
Immediately | $ 6.47 | |||
| 3 | 71003619 | Trim, Side (rt-blk) | 13 |
|
- | ||||
| 3 | 71003409 | Trim, Side (lt-blk) | 10 |
|
- | ||||
| 4 | 71001822 | Trim, Oven (lwr-blk) | 10 |
|
- | ||||
| 4 | 74005643 | Trim, Oven (lwr-blk) | 15 |
|
- | ||||
| 5 | 71001814 | Panel, Oven (side/btm/side) | 10 |
|
- | ||||
| 6 | 71003180 | Frame, Oven | 10 |
|
- | ||||
| 7 | WP74008015 | Receptacle, Hinge Assy. (Replaces: 71001828) | 10 |
|
$ 225.36 | ||||
| 8 | 71001816 | Back, Oven (inner) | 10 |
|
- | ||||
| 9 | 71001815 | Plate, Hinge Cover | 10 |
|
- | ||||
| 10 | 71001812 | Plate, Hinge Trap | 10 |
|
- | ||||
| 11 | WPY706189 | Screw (Replaces: Y706189) | 10 |
|
Immediately | $ 6.47 | |||
| 11 | 71003400 | Extrusion, Center (blk) | 10 |
|
- | ||||
| 12 | 71001817 | Insulation (wrap) | 10 |
|
- | ||||
| 13 | 71001820 | Insulation (top-btm) | 10 |
|
- | ||||
| 14 | 71002329 | Insulation (back-top) | 10 |
|
- | ||||
| 15 | 71003411 | Plate, Cover (center Support) | 10 |
|
- | ||||
| 15 | Y04100669 | Support (ctr) | 10 |
|
- |
