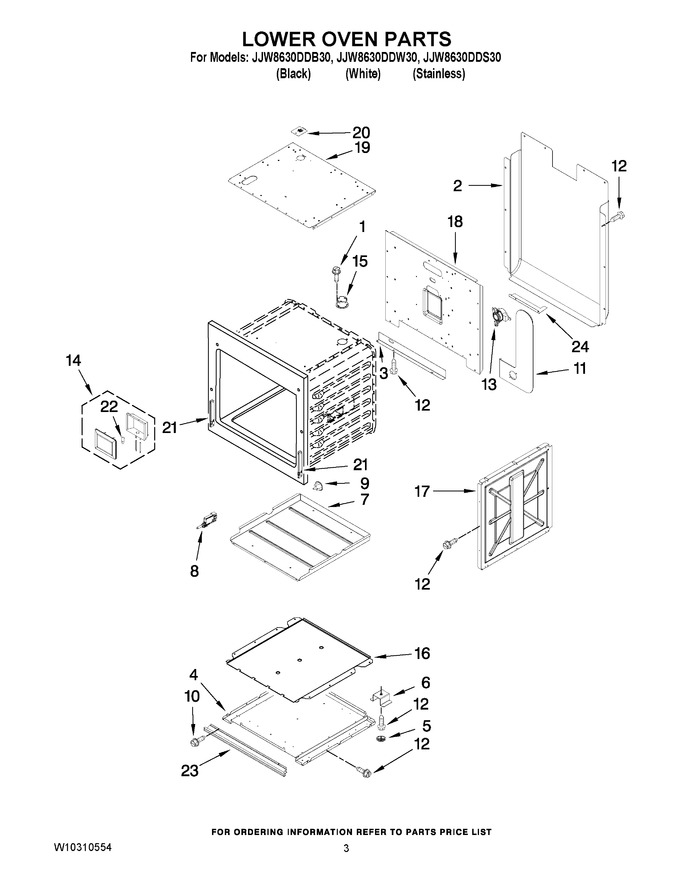

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 6.26
2	2624F043-51		Back, Main		Appelez-nous	-
3	3601F346-51		Baffle, Rear Lower		Appelez-nous	-
4	2624F079-51		Panel, Bottom		Appelez-nous	-
5	8038P035-60		Foot, Plastic (4)				$ 20.82
6	3807F706-51		Support, Air Channel		Appelez-nous	-
7	3401F079-45		Pan, Hidden Bake		Appelez-nous	-
8	WP7450P108-60		Assy., Light Sw   (Replaces: 7450P109-60)			Immediately	$ 138.24
9	74009408		Plug, Button   (Replaces: 7718P033-60)				$ 5.87
10	WPY706189		Screw   (Replaces: 7101P427-60)			Immediately	$ 6.47
11	4006F236-45		Box, Vent		Appelez-nous	-
12	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
13	WP7403P899-60		Switch, Hi Limit   (Replaces: 7403P899-60)			Immediately	$ 181.29
14	7407P179-60		Assembly, Light		Appelez-nous	-
15	8026P063-60		Tube, Vent				$ 39.18
16	3818F108-51		Channel, Bottom		Appelez-nous	-
17	2618F215-51		Panel, Side		Appelez-nous	-
18	2624F095-51		Retainer, Rear Insulation		Appelez-nous	-
19	2618F226-51		Pnl, Top Retainer		Appelez-nous	-
20	4005F721-45		Cover, Vent				$ 29.09
21	WP74011337		Receiver, Hinge   (Replaces: 7106P127-60)				$ 45.50
22	WP74009925		Bulb, Oven   (Replaces: 899138-001)			Immediately	$ 20.37
23	3608F099-70		Trim, Bottom Vent				$ 68.63
24	4005P712-51		Cover, Rear		Appelez-nous	-
NI	7002P423-60		Insulation, Wrap		Appelez-nous	-
NI	7002P352-60		Insulation, Back		Appelez-nous	-
