01 - Cooktop Parts


02 - Door And Drawer Parts

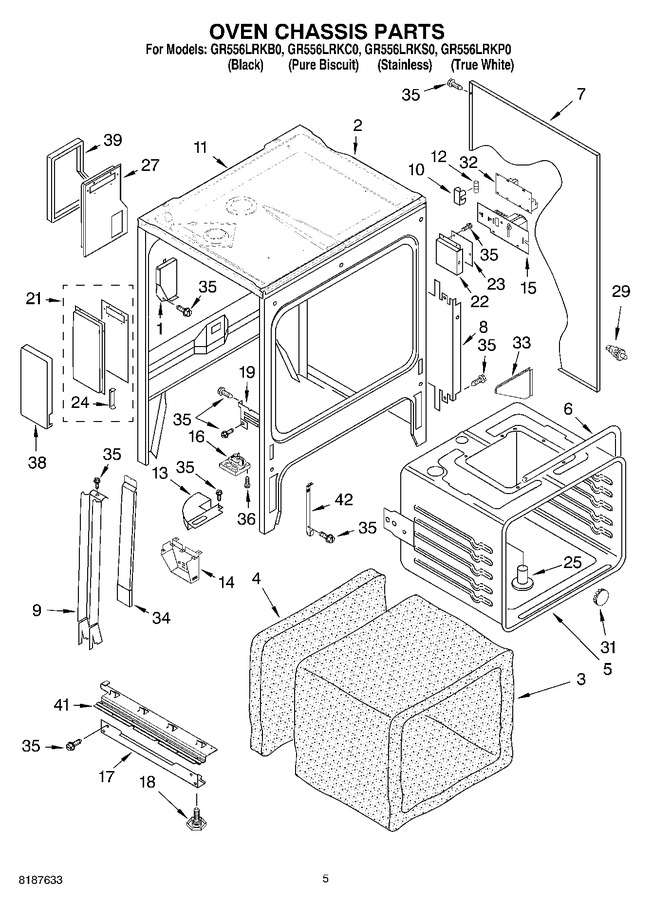

03 - Oven Chassis Parts


04 - Oven Parts


05 - Rear Chassis Parts


06 - Cooling Parts


07 - Control Panel Parts, Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9755576		Vent Box, Oven		Appelez-nous	-
2	9750514GM		Chassis, Front		Appelez-nous	-
3	9755116		Insulation, Wrap		Appelez-nous	-
4	9755117		Insulation, Rear		Appelez-nous	-
5	9755044GM		Oven Liner		Appelez-nous	-
6	9755179		Gasket, Oven		Appelez-nous	-
7	9782500PW		Side, Oven L Or R (white)		Appelez-nous	-
7	9782500PB		Side, Oven L Or R (black)		Appelez-nous	-
7	9782500PC		Side, Oven L Or R (biscuit)		Appelez-nous	-
8	9780664		Shield, Insulation		Appelez-nous	-
9	9751789		Fan Duct, Side		Appelez-nous	-
10	4454949		Block, Fuse				$ 81.63
11	8523835		Burner Box		Appelez-nous	-
12	WPW10017410		Fuse   (Replaces: 4454976)			Immediately	$ 19.05
13	9751653		Duct, Top		Appelez-nous	-
14	4453340		Support, Fan		Appelez-nous	-
15	8523034		Microcptr		Appelez-nous	-
16	9755390		Motor, Fan		Appelez-nous	-
17	9750147		Bottom Rail (2)		Appelez-nous	-
18	WPW10058460		Foot, (4)   (Replaces: 312701)			Immediately	$ 7.07
19	9782005		Hinge, Door L Or R		Appelez-nous	-
21	9755049		Side Duct		Appelez-nous	-
22	9755100		Shield, Pcb		Appelez-nous	-
23	9755099		Bracket, Pcb		Appelez-nous	-
24	4453668		Gasket, Duct		Appelez-nous	-
25	8523834		Vent, Tube		Appelez-nous	-
27	9755048		Rear Duct		Appelez-nous	-
29	9755192		Door Switch				$ 113.77
31	9780578		Button, Plug		Appelez-nous	-
32	9755090		Microcptr		Appelez-nous	-
33	9782326		Sheild, Heat		Appelez-nous	-
34	9782329		Fan Duct, Cover		Appelez-nous	-
35	9780265		Screw		Appelez-nous	-
36	9751808		Screw		Appelez-nous	-
38	9755055		Insulation		Appelez-nous	-
39	9755054		Insulation		Appelez-nous	-
41	4453362		Support (left Hand)		Appelez-nous	-
41	4453363		Support (right Hand)		Appelez-nous	-
42	9755043		Bracket, Support		Appelez-nous	-
