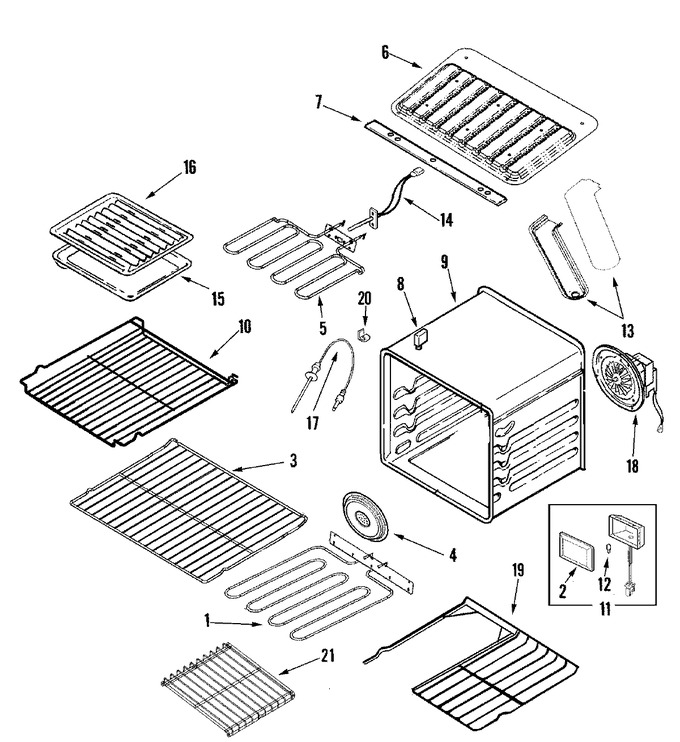

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP7406P322-60 | Element, Bake (Replaces: 74008371) | 10 |
|
Immediately | $ 173.66 | |||
| 1 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 | |||
| 2 | WP74004607 | Lens, Cover (Replaces: 74004607) | 10 |
|
$ 20.09 | ||||
| 2 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 | |||
| 3 | Y704660 | Rack, Oven | 10 |
|
$ 104.03 | ||||
| 4 | 74008461 | Cover, Convect Fan | 10 |
|
- | ||||
| 4 | 74009712 | Cover, Convect Fan | 14 |
|
- | ||||
| 4 | WP74003976 | Screw, Shoulder (Replaces: 74003976) | 10 |
|
$ 6.47 | ||||
| 5 | W10201551 | Element, Broil (upper) (Replaces: 74004106) | 27 |
|
Immediately | $ 47.97 | |||
| 5 | WPW10184147 | Element, Broil (Replaces: 74008376) | 10 |
|
$ 171.96 | ||||
| 6 | 74008375 | Shield, Broil | 10 |
|
- | ||||
| 7 | W11772394 | Screw (Replaces: 7101P345-60) | 10 |
|
Immediately | $ 10.94 | |||
| 7 | 74003563 | Support, Broil Element | 10 |
|
- | ||||
| 7 | WP7101P434-60 | Screw (Replaces: 71001394) | 10 |
|
$ 6.26 | ||||
| 8 | 7408P088-60 | Receptacle, Meat Probe (Replaces: 74011749) | 21 |
|
$ 75.57 | ||||
| 8 | 74008464 | Receptacle, Meat Probe | 10 |
|
- | ||||
| 8 | Y703356 | Nut, Hex 3/8`` | 10 |
|
- | ||||
| 9 | 74009838 | Tube, Vent (30) | 14 |
|
- | ||||
| 9 | 74008374 | Oven, Weld Assy. | 10 |
|
- | ||||
| 10 | Y704662 | Rack, Oven (offset) | 10 |
|
- | ||||
| 11 | 74004521 | Halogen Lamp Assy | 10 |
|
- | ||||
| 11 | 74009970 | Halogen Lamp Assy. | 20 |
|
$ 47.69 | ||||
| 12 | WP74009925 | Bulb, Halogen (Replaces: 74004458) | 10 |
|
Immediately | $ 20.37 | |||
| 13 | 74009843 | Vent Box Assy. | 14 |
|
- | ||||
| 13 | 74008342 | Vent Box Assy. | 10 |
|
- | ||||
| 13 | 74010527 | Cover, Vent (upper) | 10 |
|
- | ||||
| 14 | WP74008369 | Sensor, Oven (Replaces: 74008369) | 10 |
|
Immediately | $ 119.65 | |||
| 14 | WP7101P434-60 | Screw (Replaces: 71001394) | 10 |
|
$ 6.26 | ||||
| 14 | 7430P046-60 | Sensor-oven | 27 |
|
$ 120.05 | ||||
| 15 | Y3401F02019 | Pan, Broil | 10 |
|
- | ||||
| 16 | Y3413F01619 | Insert, Broil Pan | 10 |
|
- | ||||
| 17 | WP7430P038-60 | Probe, Meat (Replaces: 74008469) | 10 |
|
$ 129.30 | ||||
| 18 | 74008466 | Fan, Convection Assy. | 10 |
|
- | ||||
| 18 | 74009713 | Fan, Convection Assy. | 14 |
|
- | ||||
| 19 | 74008465 | Rack, Create A Space Half 27`` | 10 |
|
- | ||||
| 19 | 74009586 | Rack, Create A Space Half 27`` | 13 |
|
$ 76.43 | ||||
| 20 | 71001170 | Clip, Oven | 10 |
|
- | ||||
| 21 | 74009588 | Insert, Half Rack 27`` | 13 |
|
$ 76.08 | ||||
| 21 | 74008474 | Insert, Half Rack 27`` | 10 |
|
- | ||||
| 22 | 74009585 | Rack, Oven (smart & Easy 27``) | 12 |
|
$ 131.94 |
