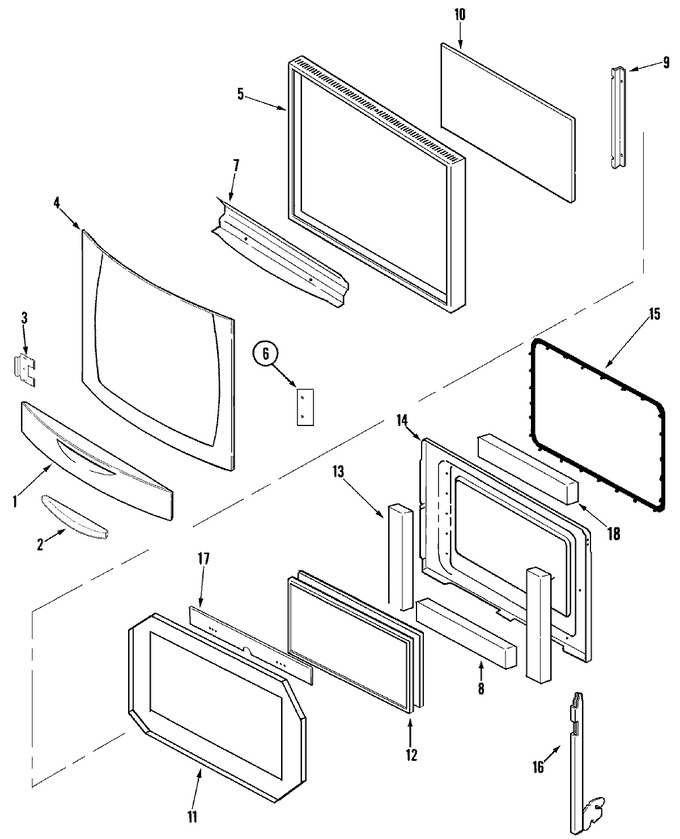

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74006913		Insulation, Door Handle (stl)	10	Appelez-nous	-
1	W11233072		Screw (no.8ab)   (Replaces: 71001183)	10		Immediately	$ 12.62
1	74006916		Handle, Door (stl)	10	Appelez-nous	-
2	74005592		Pocket, Handle (blk)	10	Appelez-nous	-
2	W10896751		Washer   (Replaces: 7109P036-60)	10	Appelez-nous	-
2	W11772394		Screw   (Replaces: 74003132)	10		Immediately	$ 10.94
3	71003386		Bracket, Handle	10	Appelez-nous	-
4	74006914		Glass, Door (stl)	10	Appelez-nous	-
5	74006310		Frame, Door (blk)	10	Appelez-nous	-
5	WPY706189		Screw   (Replaces: Y706189)	10		Immediately	$ 6.47
6	74006907		Insulation, Door Hinge	10	Appelez-nous	-
7	74006892		Shield, Heat	10	Appelez-nous	-
7	790058		Gasket, Window	10	Appelez-nous	-
8	71001838		Insulation, Door (btm)	10	Appelez-nous	-
9	WP90767		Screw   (Replaces: Y700502)	10		Immediately	$ 7.04
9	74003650		Retainer, Glass	10	Appelez-nous	-
10	74006915		Glass, Inner	10	Appelez-nous	-
11	WP3400029		Nut   (Replaces: 715634)	10		Immediately	$ 6.98
11	74005648		Retainer, Insulation	10	Appelez-nous	-
12	74005641		Window Assembly	10	Appelez-nous	-
13	71001839		Insulation, Door (side)	10	Appelez-nous	-
14	74005642		Liner, Oven Door	10	Appelez-nous	-
15	WP71001841		Seal, Door   (Replaces: 71001841)	10		Immediately	$ 160.14
16	WP74008014		Hinge, Door   (Replaces: 71003350)	10		Immediately	$ 129.55
16	W10828565		Screw, Black   (Replaces: 7101P270-60)	10			$ 6.70
17	702731		Screw	10	Appelez-nous	-
17	74005614		Heat Sink	10	Appelez-nous	-
18	74005634		Insulation, Top	10	Appelez-nous	-
19	74007237		Spacer, Dehydration Door   (Replaces: 74004226)	10			$ 50.54
