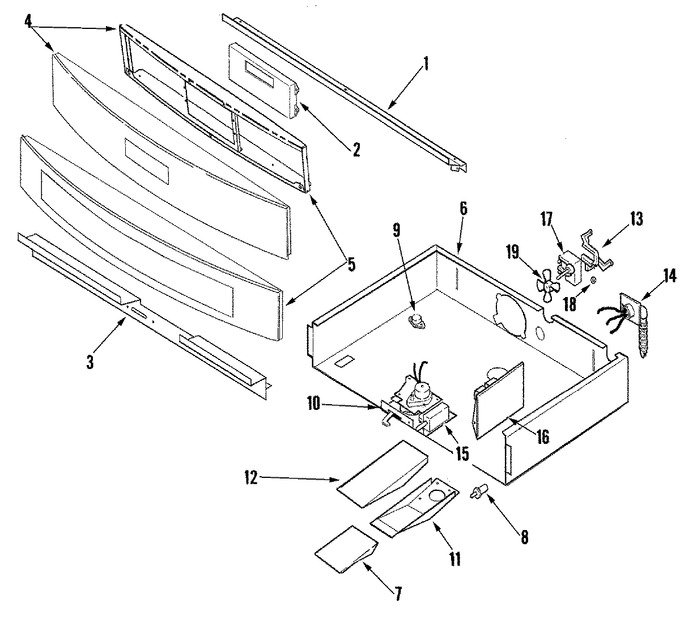

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP98008545 | Screw (8abx1/2``-blk) (Replaces: 790448) | 10 |
|
$ 15.94 | ||||
| 1 | 74006816 | Support, Top Control | 10 |
|
- | ||||
| 1 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 | |||
| 1 | 74007581 | Support, Top Control | 12 |
|
- | ||||
| 2 | WP71003424 | Clock (Replaces: 71003424) | 10 |
|
Immediately | $ 339.57 | |||
| 3 | 71001804 | Trim, Control Panel | 10 |
|
- | ||||
| 4 | 74007044 | Panel, Control (wht) | 10 |
|
- | ||||
| 6 | 74006821 | Panel, Top (inr) | 10 |
|
- | ||||
| 7 | 71001843 | Extension, Vent | 10 |
|
- | ||||
| 8 | 71001129 | Switch, Door Lock | 10 |
|
- | ||||
| 9 | WP7403P899-60 | Switch, Hi-limit (Replaces: Y702548) | 10 |
|
Immediately | $ 181.29 | |||
| 9 | WP7101P126-60 | Screw (Replaces: Y708310) | 10 |
|
Immediately | $ 6.85 | |||
| 10 | 71001845 | Latch, Door Assy. | 10 |
|
$ 160.79 | ||||
| 11 | 71001846 | Vent (btm) | 10 |
|
- | ||||
| 12 | 71001847 | Vent (top) | 10 |
|
- | ||||
| 13 | 71001853 | Bracket, Fan | 10 |
|
- | ||||
| 14 | 71002603 | Wire Cable Assy. | 10 |
|
- | ||||
| 15 | 71002904 | Switch, Door Light | 10 |
|
$ 63.99 | ||||
| 16 | 74006614 | Board, Relay | 10 |
|
$ 319.20 | ||||
| 17 | 71001851 | Fan Motor Assy. | 10 |
|
- | ||||
| 18 | M0282005 | Nut, Hex (Replaces: 701719) | 10 |
|
$ 7.07 | ||||
| 18 | WPW10339879 | Tie, Cable (Replaces: 701678) | 10 |
|
$ 7.11 | ||||
| 19 | 71001852 | Blade, Fan | 10 |
|
- |
