Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 262T007P02 Fuse-5a 250v Appelez-nous -
2 166T008P03 Contrl Press Regul Lot 1-5 Appelez-nous -
3 439T046P13 Manifold Pipe Appelez-nous -
4 695T143P01 Switch-igniter (4) Appelez-nous -
5 774T118P01 Valve-burnr Top (4) Appelez-nous -
6 080T013P01 Burnr-top Frnt (2) Lot 1-7 Appelez-nous -
8 597T034P02 Recept-fuse Lot 1-5 Appelez-nous -
9 612T103F01 Retainr-tp Ign Harns (2) Lot 1-4 Appelez-nous -
10 036T049S03 Base-igniter Rh Appelez-nous -
11 036T049S04 Base-igniter Lh Appelez-nous -
3A 008T276F04 Angle Appelez-nous -
4A 299T378P31 Harns-igniter Sw Lot 1-4 (non-illustrated) Appelez-nous -
7A 451T004R01 Mixer-air Tp Burnr (4) Lot 1-7 Appelez-nous -
9A 636T096P02 Scrw-retain Mtg 8-32 X 3/8 Ph Bd Hd (2) Lot 1-5 (non-illustrated) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

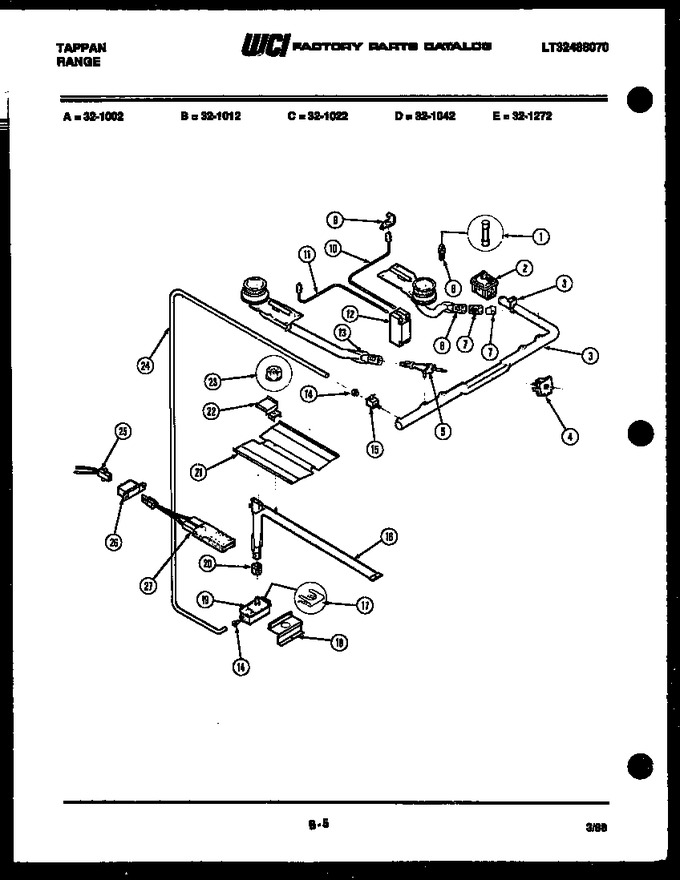

Diagram for 32-1012-32-02
