01 - Body
02 - Control Panel
03 - Door (upper & Lower)
04 - Internal Controls
05 - Oven
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

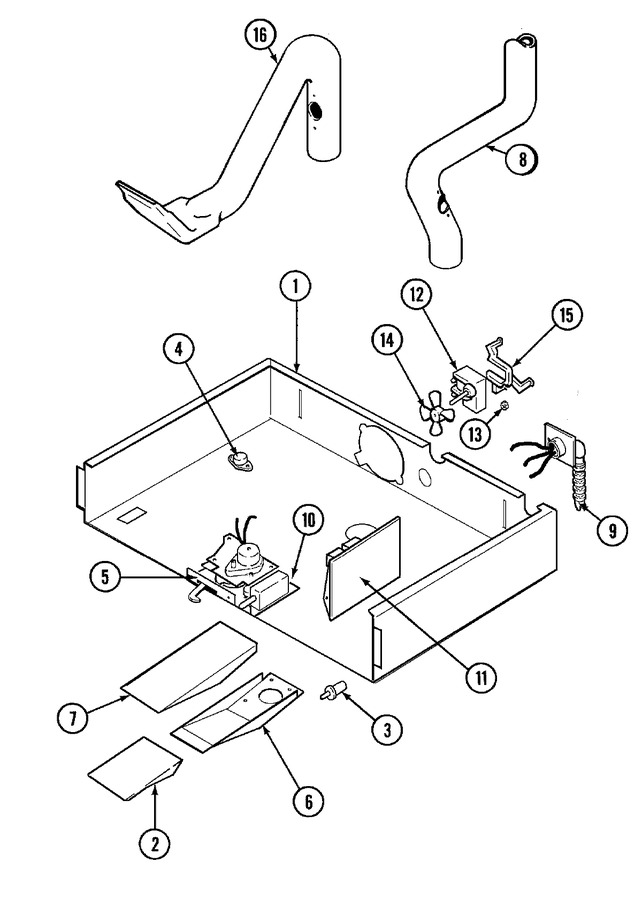

| 1 | 74006827 | Panel, Top (inr) | 10 |
|
- | ||||
| 2 | 71001843 | Extension, Vent | 10 |
|
- | ||||
| 3 | 71001129 | Switch, Door Lock | 10 |
|
- | ||||
| 4 | 71001887 | Thermostat, Fixed | 10 |
|
- | ||||
| 4 | WP71001844 | Thermostat, Hi-limit (Replaces: 71001844) | 10 |
|
$ 195.41 | ||||
| 4 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 | |||
| 5 | 71001845 | Latch, Door Assy. | 10 |
|
$ 160.79 | ||||
| 6 | 71001846 | Vent (btm) | 10 |
|
- | ||||
| 7 | 71001847 | Vent (top) | 10 |
|
- | ||||
| 8 | 71002418 | Tube, Vent (lwr) | 10 |
|
- | ||||
| 9 | 71001888 | Wire Cable Assy. | 10 |
|
- | ||||
| 10 | 71002904 | Switch, Door Light | 10 |
|
$ 63.99 | ||||
| 11 | 71003399 | Board, Relay (lower) | 10 |
|
- | ||||
| 11 | 74006613 | Board, Relay (upper) (Replaces: 71003402) | 10 |
|
$ 265.68 | ||||
| 12 | 71001851 | Fan Motor Assy. | 10 |
|
- | ||||
| 13 | M0282005 | Nut, Hex (Replaces: 701719) | 10 |
|
$ 7.07 | ||||
| 14 | 71001852 | Blade, Fan | 10 |
|
- | ||||
| 15 | 71001853 | Bracket, Fan | 10 |
|
- | ||||
| 16 | 71002417 | Tube, Vent (upr) | 10 |
|
- |
