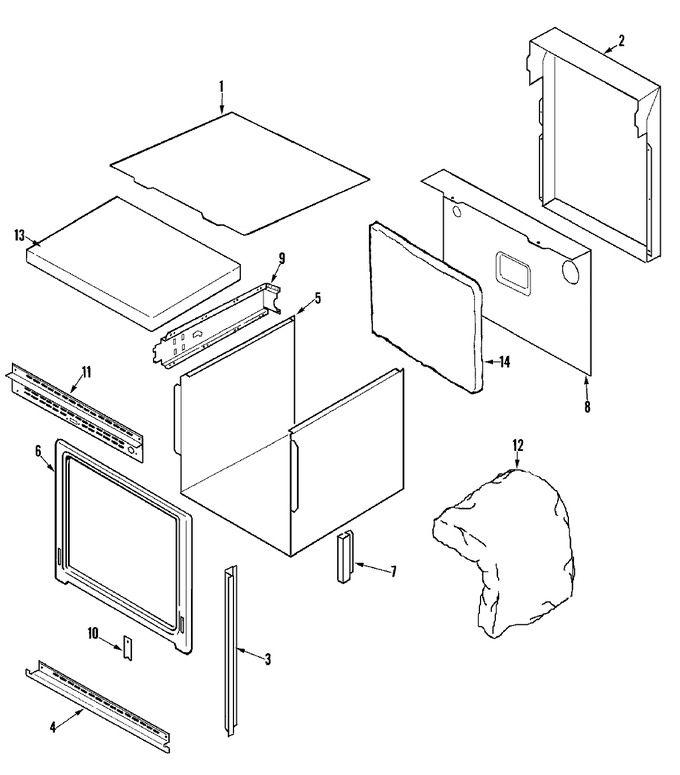

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y74006818		Panel, Top (outer)	10	Appelez-nous	-
1	WP90767		Screw   (Replaces: Y700502)	10		Immediately	$ 7.04
2	71001878		Back, Outer (upr)	10	Appelez-nous	-
2	71001883		Back, Outer (lwr)	10	Appelez-nous	-
3	WP90767		Screw   (Replaces: Y700502)	10		Immediately	$ 7.04
3	74005665		Trim, Side (blk)	10	Appelez-nous	-
4	WPY706189		Screw   (Replaces: Y706189)	10		Immediately	$ 6.47
4	74005643		Trim, Oven (lwr-blk)	10	Appelez-nous	-
5	WP90767		Screw   (Replaces: Y700502)	10		Immediately	$ 7.04
5	74005645		Panel, Oven (side/btm/side)	10	Appelez-nous	-
6	71003180		Frame, Oven	10	Appelez-nous	-
7	WP74008015		Receptacle, Hinge Assy.   (Replaces: 71001828)	10			$ 225.36
8	702731		Screw	10	Appelez-nous	-
8	74004629		Panel, Back (inr)	10	Appelez-nous	-
9	71003411		Plate, Cover (center Support)	10	Appelez-nous	-
9	Y04100669		Support (ctr)	10	Appelez-nous	-
10	71001812		Plate, Hinge Trap	10	Appelez-nous	-
10	WPY706189		Screw   (Replaces: Y706189)	10		Immediately	$ 6.47
11	WPY706189		Screw   (Replaces: Y706189)	10		Immediately	$ 6.47
11	71003400		Extrusion, Center (blk)	10	Appelez-nous	-
12	71001817		Insulation (wrap)	10	Appelez-nous	-
13	71003614		Insulation (btm)	10	Appelez-nous	-
14	71002329		Insulation (back-top)	10	Appelez-nous	-
15	W10759523		Screw (blk)   (Replaces: 71002264)	10			$ 5.71
