Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP90767 Screw   (Replaces: Y700502) 10 In-Stock Immediately $ 7.04

1 74008366 Cover, Top 10 Appelez-nous -
2 74008428 Panel, Top Retainer 30`` 10 Appelez-nous -
2 74011385 Panel, Top Retainer (upr-30) 20 Appelez-nous -
2 WP90767 Screw   (Replaces: Y700502) 10 In-Stock Immediately $ 7.04

2 74009572 Bracket, Center Support 10 Appelez-nous -
2 2618F226-51 Panel, Top Retainer 27 Appelez-nous -
3 WP90767 Screw   (Replaces: Y700502) 10 In-Stock Immediately $ 7.04

3 74008365 Cover, Main Back 10 Appelez-nous -
4 12002403 Kit, Side Trim (double) 17 Appelez-nous -
4 74008438 Trim, Side (double-blk) 10 Appelez-nous -
4 WP90767 Screw   (Replaces: Y700502) 10 In-Stock Immediately $ 7.04

5 74008403 Trim, Bottom (blk) 10 Appelez-nous -
5 WPY706189 Screw   (Replaces: Y706189) 10 In-Stock Immediately $ 6.47

6 74011390 Panel, Side 20 Appelez-nous -
6 WP90767 Screw   (Replaces: Y700502) 10 In-Stock Immediately $ 7.04

6 74008381 Panel, Side 10 Appelez-nous -
7 WP7403P899-60 Switch, Hi-limit   (Replaces: Y702548) 10 In-Stock Immediately $ 181.29

7 WP7403P899-60 Switch, High Limit   (Replaces: 74009837) 15 In-Stock Immediately $ 181.29

7 WP90767 Screw   (Replaces: Y700502) 10 In-Stock Immediately $ 7.04

8 WP74011337 Receptacle, Hinge   (Replaces: 74010285) 18 Special Order $ 45.50

8 WP74011337 Receptacle, Hinge   (Replaces: 74008377) 10 Special Order $ 45.50

8 WP4159193 Screw (10-24x5/16-ni)   (Replaces: 7101P282-60) 10 Special Order $ 4.29

9 74009179 Retainer, Insulation (dbl 30``) 10 Appelez-nous -
9 74008429 Retainer, Insulation (upr) 10 Appelez-nous -
9 74011387 Retainer, Insul (rear Lwr 30) 20 Appelez-nous -
9 74011386 Retainer, Insul (rear Upr 30) 20 Appelez-nous -
10 74008405 Insulation, Back 10 Appelez-nous -
11 WP90767 Screw   (Replaces: Y700502) 10 In-Stock Immediately $ 7.04

11 74008406 Panel, Bottom (30``) 10 Appelez-nous -
12 74008407 Insulation, (wrap) 10 Appelez-nous -
13 3807F678-45 Retainer, Bake Element (v)   (Replaces: 74008372) 10 Appelez-nous -
14 WP90767 Screw   (Replaces: Y700502) 10 In-Stock Immediately $ 7.04

14 74008446 Channel, Vent (double) 10 Appelez-nous -
14 74008450 Channel, Vent 10 Appelez-nous -
15 74010496 Foot, Oven 10 Appelez-nous -
15 74008352 Channel, Bottom Air 10 Appelez-nous -
16 74008356 Pan, Hidden Bake 10 Appelez-nous -
16 WP90767 Screw   (Replaces: Y700502) 10 In-Stock Immediately $ 7.04

17 74008427 Panel, Top Retainer (lwr) 30`` 10 Appelez-nous -
18 74011384 Panel, Top Retainer (lwr-30) 20 Appelez-nous -
18 74008431 Trim, Center (blk) 10 Appelez-nous -
18 2618F225-51 Panel, Top Retainer 27 Special Order $ 32.44

19 74008433 Support, Center 10 Appelez-nous -
20 74008430 Cover, Main Back 10 Appelez-nous -
20 WP90767 Screw   (Replaces: Y700502) 10 In-Stock Immediately $ 7.04


    View Diagram in Separate Window     Print Icon   Print Part List

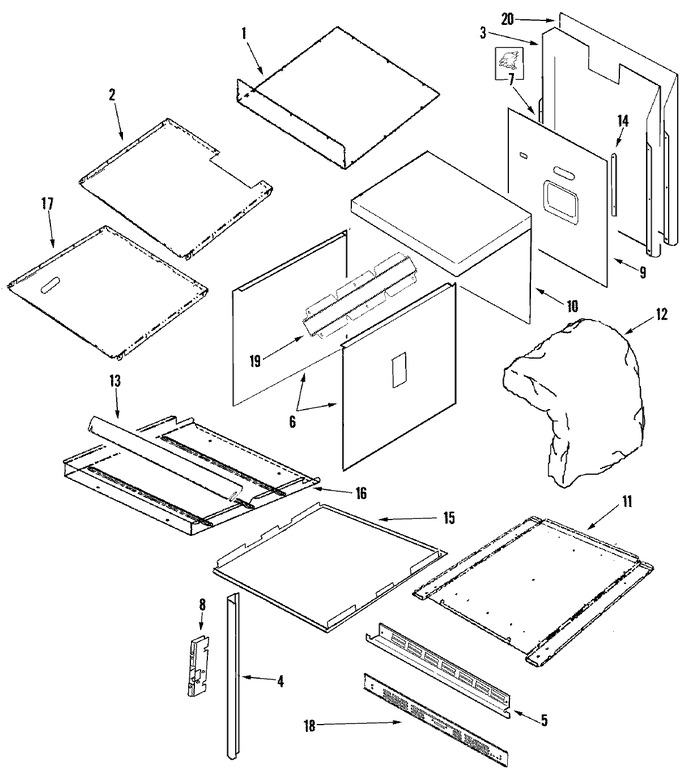

Diagram for JJW9630DDB
