SELECT A DIAGRAM
New Model Search:

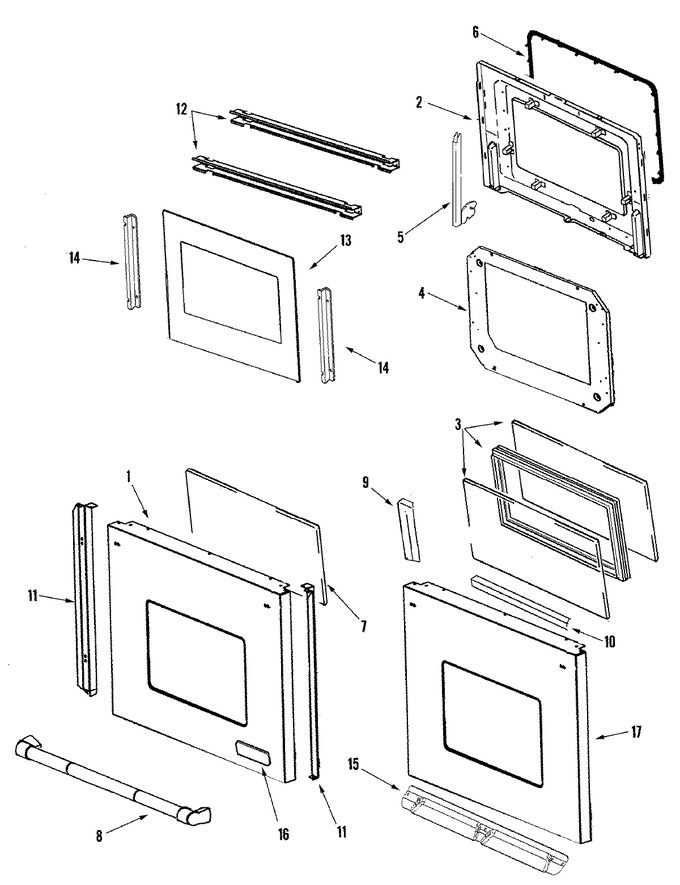

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74008511 | Panel, Door W/logo (pro 27``) | 10 |
|
- | ||||
| 1 | W11233072 | Screw (Replaces: 74004208) | 10 |
|
Immediately | $ 12.62 | |||
| 1 | W11233072 | Screw (no.8ab) (Replaces: 71001183) | 10 |
|
Immediately | $ 12.62 | |||
| 2 | 74008367 | Liner, Oven Door | 10 |
|
- | ||||
| 3 | 74005639 | Window Assembly | 10 |
|
- | ||||
| 4 | 74005638 | Retainer, Insulation | 10 |
|
- | ||||
| 4 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 | |||
| 5 | WPY706189 | Screw (Replaces: Y706189) | 10 |
|
Immediately | $ 6.47 | |||
| 5 | WP74010284 | Hinge, Door (Replaces: 74010284) | 16 |
|
Immediately | $ 115.11 | |||
| 5 | 74008384 | Hinge, Door | 10 |
|
- | ||||
| 5 | WP4159193 | Screw (10-24x5/16-ni) (Replaces: 7101P282-60) | 10 |
|
$ 4.29 | ||||
| 6 | WP71001970 | Seal, Door (Replaces: 71001970) | 10 |
|
$ 156.50 | ||||
| 7 | 74005633 | Glass, Inner Door | 10 |
|
- | ||||
| 8 | 74008501 | Handle, Door (27`` Pro) | 10 |
|
- | ||||
| 9 | 71001839 | Insulation, Door (side) | 10 |
|
- | ||||
| 10 | 71001969 | Insulation, Door (btm) | 10 |
|
- | ||||
| 11 | 74008497 | Panel, Door Side (rt) | 10 |
|
- | ||||
| 11 | 74008496 | Panel, Door Side (lt) | 10 |
|
- | ||||
| 12 | 74008499 | Retainer, Door Glass (27`` Pro) | 10 |
|
- | ||||
| 13 | 74008391 | Glass, Door (screened) | 10 |
|
$ 64.90 | ||||
| 14 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 | |||
| 14 | 74003650 | Retainer, Glass | 10 |
|
- | ||||
| 15 | 74008392 | Trim, Bottom Door Vent (blk) | 10 |
|
- | ||||
| 15 | WPY706189 | Screw (Replaces: Y706189) | 10 |
|
Immediately | $ 6.47 | |||
| 16 | 74006889 | Nameplate (stl) | 10 |
|
$ 43.24 | ||||
| 17 | 74008512 | Panel, Door (pro 27`` Lwr) | 10 |
|
- |
