01 - Upper Oven Parts
02 - Lower Oven Parts
03 - Upper Oven Door Parts
04 - Lower Oven Door Parts
05 - Internal Oven Parts
06 - Control Panel Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:

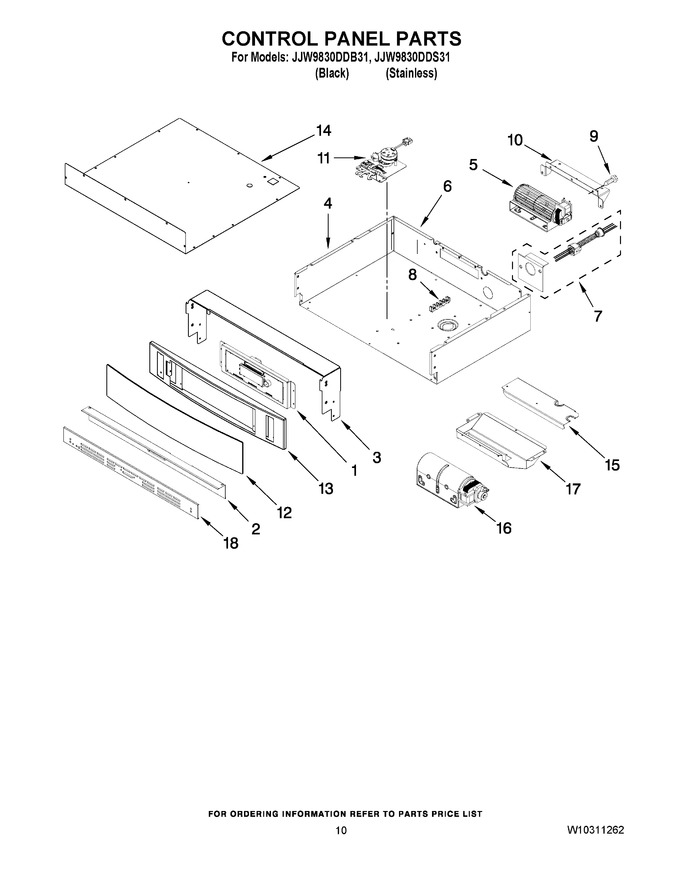

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10169130 | Control |
|
$ 524.40 | |||||
| 2 | 3608F107-70 | Trim, Control Pnl |
|
- | |||||
| 3 | 3807F717-51 | Support, Top Cntrl |
|
$ 31.22 | |||||
| 4 | 2624F077-51 | Panel, Cntrl Side (right) |
|
- | |||||
| 4 | 2624F076-51 | Panel, Cntrl Side (left) |
|
- | |||||
| 5 | WP74008383 | Fan, Upper (Replaces: 7427P062-60) |
|
Immediately | $ 181.53 | ||||
| 6 | W10187048 | Panel, Control Box Rear (Replaces: 2624F100-51) |
|
- | |||||
| 7 | 5700P821-60 | Assembly, Cable |
|
- | |||||
| 8 | WPW10245259 | Block, Terminal (Replaces: 7401P039-60) |
|
Immediately | $ 31.65 | ||||
| 9 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 10 | 3801F829-51 | Brkt., Cooling Fan (upper) |
|
$ 76.94 | |||||
| 11 | WPW10186996 | Assy., Latch Door (Replaces: W10186996) |
|
Immediately | $ 330.95 | ||||
| 12 | 7912P364-60 | Glass, Control Pnl (black) |
|
- | |||||
| 12 | 7912P368-60 | Glass, Control Pnl (stainless) |
|
- | |||||
| 13 | 3807W664-70 | Frame, Cntrl Assy. |
|
- | |||||
| 14 | 2624F098-44 | Panel, Control Box Top |
|
- | |||||
| 15 | 4005F785-51 | Cover, Air Channel |
|
- | |||||
| 16 | 7427P065-60 | Fan, Lower |
|
- | |||||
| 17 | 3801F772-51 | Brkt., Cooling Fan (lower) |
|
- | |||||
| 18 | 3608F112-70 | Trim, Control Pnl (center) |
|
- |
