SELECT A DIAGRAM

01 - Microwave Door Parts


02 - Microwave Control Panel Parts

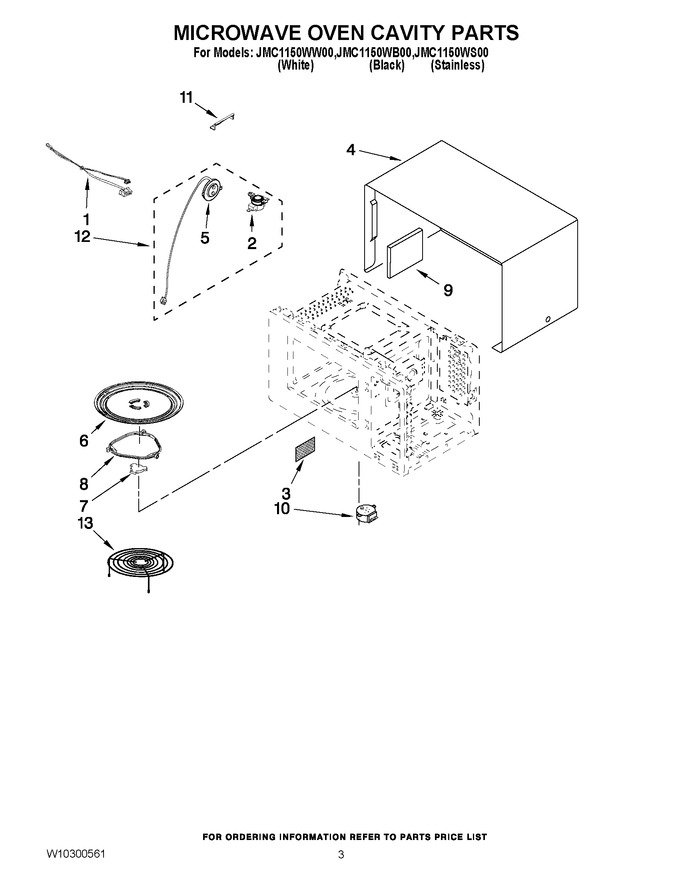

03 - Microwave Oven Cavity Parts


04 - Microwave Latch Board Parts


05 - Microwave Interior Parts


06 - Base Plate And Convection Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10284506		Wire, Harness		Appelez-nous	-
2	DE96-00315B		Thermostat		Appelez-nous	-
3	DE63-00376A		Cover, Mgt				$ 33.18
4	W10284503		Outer, Case (white)		Appelez-nous	-
4	DE70-30033V		Outer, Case (black/stainless)		Appelez-nous	-
5	DE32-60011A		Sensor, Humidity			Immediately	$ 86.27
6	DE74-00023A		Tray, Glass			Immediately	$ 85.84
7	DE67-00206A		Shaft, Turntable				$ 17.58
8	DE97-00192C		Ring, Turntable				$ 43.17
9	W10284513		Cushion, Rubber		Appelez-nous	-
10	DE31-10104A		Motor, Drive		Appelez-nous	-
11	W10284502		Bracket, Guide		Appelez-nous	-
12	W10284510		Assy, Bracket		Appelez-nous	-
13	W10284513		Rack		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
