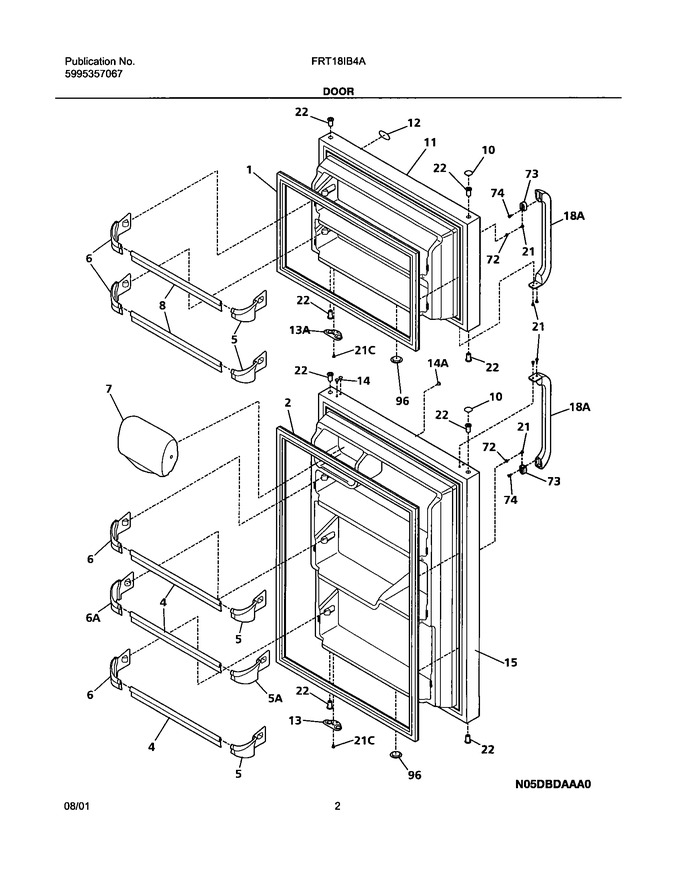

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 240331401 | Rack-door,20.27`` X 1.72`` |
|
Immediately | $ 47.78 | ||||
| 5 | 240311502 | Support-door Rack,2 Liter ,rh |
|
Immediately | $ 11.34 | ||||
| 6 | 240311501 | Support-door Rack,2 Liter ,lh |
|
Immediately | $ 11.34 | ||||
| 7 | 240337701 | Door-dairy,w/o Graphics ,white |
|
Immediately | $ 34.02 | ||||
| 8 | 240331401 | Rack-door,17.99`` X 1.72`` (Replaces: 240331402) |
|
Immediately | $ 47.78 | ||||
| 10 | 240381301 | Plug-button,hinge Brg Hole ,white ,(2) |
|
Immediately | $ 18.95 | ||||
| 11 | 240412501 | Door,frzr ,white ,complete Assy |
|
$ 491.14 | |||||
| 12 | 241808601 | Label-nameplate,white (Replaces: 240415201) |
|
$ 12.69 | |||||
| 13 | 240312421 | Door Stop,white ,ref (Replaces: 240312403) |
|
$ 15.17 | |||||
| 14 | 240494001 | Plug-button, White (Replaces: 218915701) |
|
Immediately | $ 18.20 | ||||
| 15 | 240412601 | Door,refr ,white ,complete Assy |
|
$ 334.26 | |||||
| 21 | 5304515677 | Screw,truss Hd Quad ,no.10-16 X .500 (Replaces: 240383401) |
|
Immediately | $ 19.23 | ||||
| 22 | 5304507146 | Bearing-hinge,natural Color ,(8) (Replaces: 240311201) |
|
Immediately | $ 7.59 | ||||
| 72 | 218397000 | Button-handle Mtg, Dovetail |
|
$ 16.74 | |||||
| 73 | 218396700 | Block-handle Mtg, Dovetail |
|
Immediately | $ 45.36 | ||||
| 74 | 215503203 | Screw,cr Pan Hd `10-16 X 0.500 (Replaces: 215503200) |
|
Immediately | $ 7.09 | ||||
| 96 | 240345503 | Plug-foam Hole,white |
|
- | |||||
| 13A | 240312414 | Door Stop,white ,frzr (Replaces: 240312404) |
|
$ 19.13 | |||||
| 14A | 240494001 | Plug-button,screw Type ,white (Replaces: 240428301) |
|
Immediately | $ 18.20 | ||||
| 18A | 218428101 | Handle-door, White, W/block & Screw |
|
Immediately | $ 22.73 | ||||
| 21C | 218252201 | Screw,no.8 Truss Hd ,10-32ca X 0.500 (Replaces: 218252200) |
|
Immediately | $ 14.18 | ||||
| 5A | 240331502 | Support-door Rack,gallon ,rh |
|
Immediately | $ 13.46 | ||||
| 6A | 240331501 | Support-door Rack,gallon ,lh |
|
Immediately | $ 13.46 | ||||
| F1 | 241872503 | Gasket-frzr Door,white ,magnetic (Replaces: 240370905) |
|
Immediately | $ 137.66 | ||||
| F2 | 242193213 | Gasket-refr Door,white ,magnetic (Replaces: 240370906) |
|
Immediately | $ 190.22 |
