01 - Cover Sheet
02 - Oven Parts
03 - Control Panel Parts

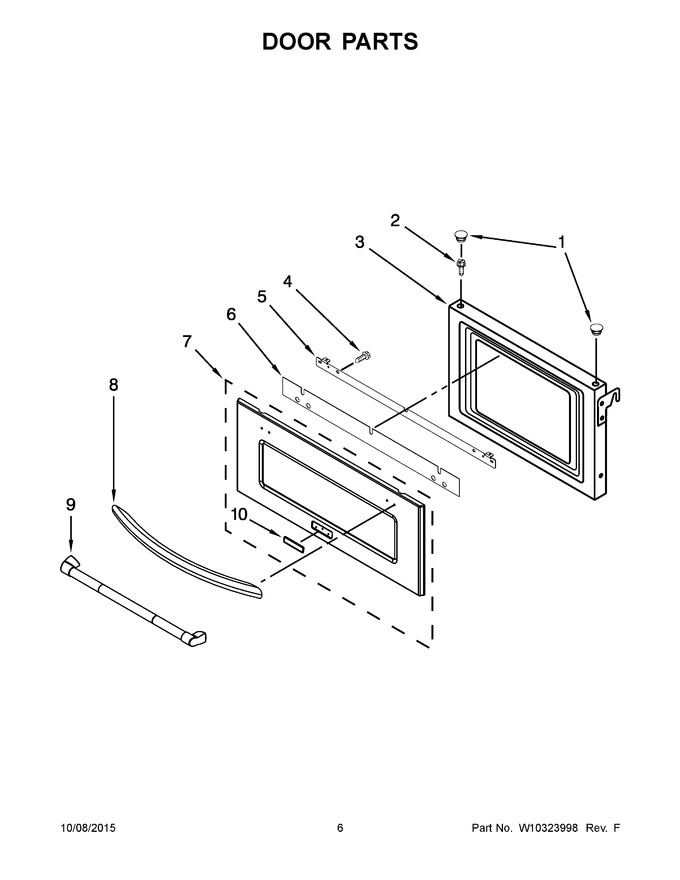

04 - Door Parts
05 - Cabinet And Stirrer Parts
06 - Internal Microwave Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11756840 | Cap, Screw (Replaces: 8304588BL) |
|
$ 10.58 | |||||
| 2 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 3 | W11684570 | Door, Microwave (Replaces: W10288012) |
|
Immediately | $ 508.92 | ||||
| 4 | W10267047 | Screw |
|
$ 11.55 | |||||
| 5 | W10176199 | Bracket, Handle (stainless) |
|
$ 36.15 | |||||
| 6 | W10314607 | Spacer, Handle |
|
- | |||||
| 7 | WPW10176200 | Glass Assembly (black) (Replaces: W10176200) |
|
$ 385.19 | |||||
| 8 | W10186755 | Handle, Door (black) |
|
$ 240.68 | |||||
| 9 | W10856834 | Handle, Door (pro-style) (Replaces: W10187014) |
|
$ 287.78 | |||||
| 10 | WPW10214168 | Badge (black) (Replaces: W10190724) |
|
$ 73.67 | |||||
| 10A | WPW10214168 | Badge (stainless) (Replaces: W10214168) |
|
$ 73.67 | |||||
| 10B | W10214169 | Badge (oiled Bronze) |
|
$ 45.79 | |||||
| 10C | WPW10159578 | Badge (stainless (pro-style Models)) (Replaces: W10159578) |
|
Immediately | $ 75.89 | ||||
| 5A | W10281176 | Bracket, Handle (pro-style) |
|
$ 53.81 | |||||
| 7A | W10269421 | Glass Assembly (stainless) |
|
- | |||||
| 7B | W10269422 | Glass Assembly (oiled Bronze) |
|
$ 297.12 | |||||
| 7C | W10269423 | Glass Assembly (pro-style) |
|
- | |||||
| 8A | W10186756 | Handle, Door (stainless) |
|
$ 139.42 | |||||
| 8B | W10186757 | Handle, Door (oiled Bronze) |
|
$ 240.62 |
