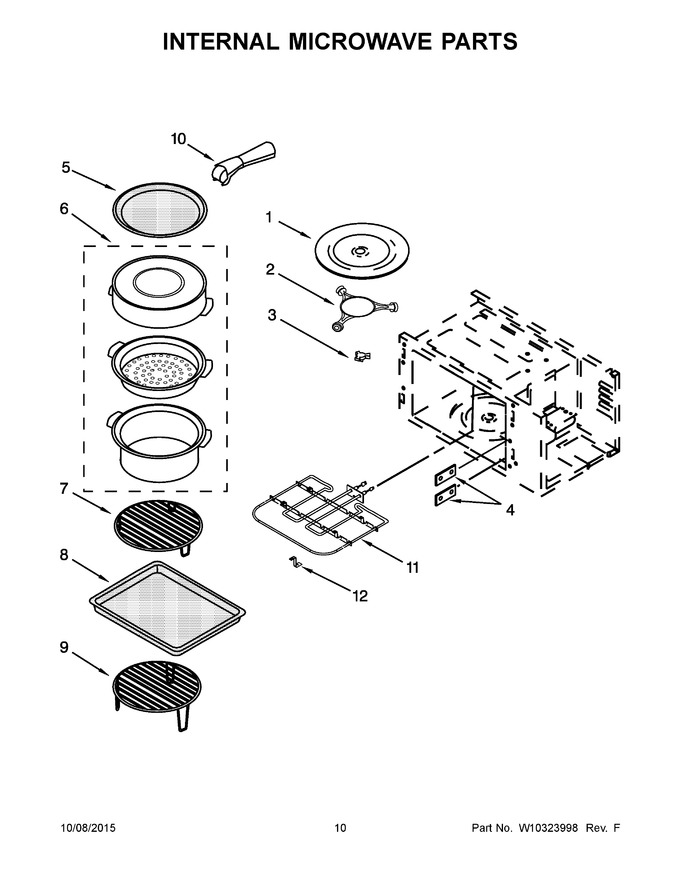

06 - Internal Microwave Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11373838 | Tray, Cook (Replaces: 8205676) |
|
Immediately | $ 70.65 | ||||
| 2 | W11110134 | Ring, Turntable (Replaces: 8205678) |
|
Immediately | $ 66.60 | ||||
| 3 | WPW10776938 | Drive, Turntable (Replaces: 8205677) |
|
Immediately | $ 26.52 | ||||
| 4 | W10915651 | Plate, Cover (Replaces: W10120230) |
|
Immediately | $ 76.20 | ||||
| 5 | W11512490 | Plate, Crisp (Replaces: W10330573) |
|
Immediately | $ 109.35 | ||||
| 6 | W10660052 | Steamer (Replaces: W10120484) |
|
Immediately | $ 25.73 | ||||
| 7 | 4452220 | Rack, Convection |
|
$ 146.03 | |||||
| 8 | W11512489 | Plate, Baking (Replaces: W10120486) |
|
$ 83.62 | |||||
| 9 | W11175831 | Rack (Replaces: W10120483) |
|
$ 38.47 | |||||
| 10 | W10851464 | Handle, Pan (Replaces: W10120481) |
|
$ 22.35 | |||||
| 11 | W10776940 | Heater, Grill (Replaces: W10120226) |
|
$ 323.51 | |||||
| 12 | W11724411 | Support, Element (Replaces: W10288008) |
|
Immediately | $ 51.91 |
