01 - Cabinet-base-cavity

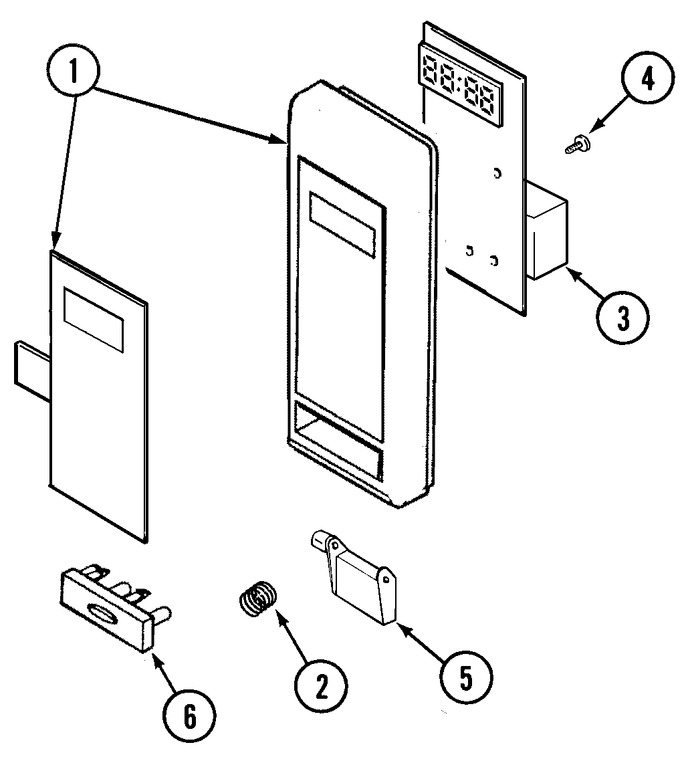

02 - Control Panel
03 - Door
04 - Wiring Information
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 56001379 | Control Trim/switch Assy (wht) | 10 |
|
- | ||||
| 1 | 56001210 | Screw | 10 |
|
- | ||||
| 2 | 56001011 | Spring, Button | 10 |
|
- | ||||
| 3 | 56001202 | Board, Control | 10 |
|
- | ||||
| 4 | 56001210 | Screw | 10 |
|
- | ||||
| 5 | 56001192 | Lever, Door | 10 |
|
- | ||||
| 6 | 56001384 | Button, Door (wht) | 10 |
|
- | ||||
| 7 | 56001382 | Manual, Use & Care | 10 |
|
- |
