01 - Base/cavity

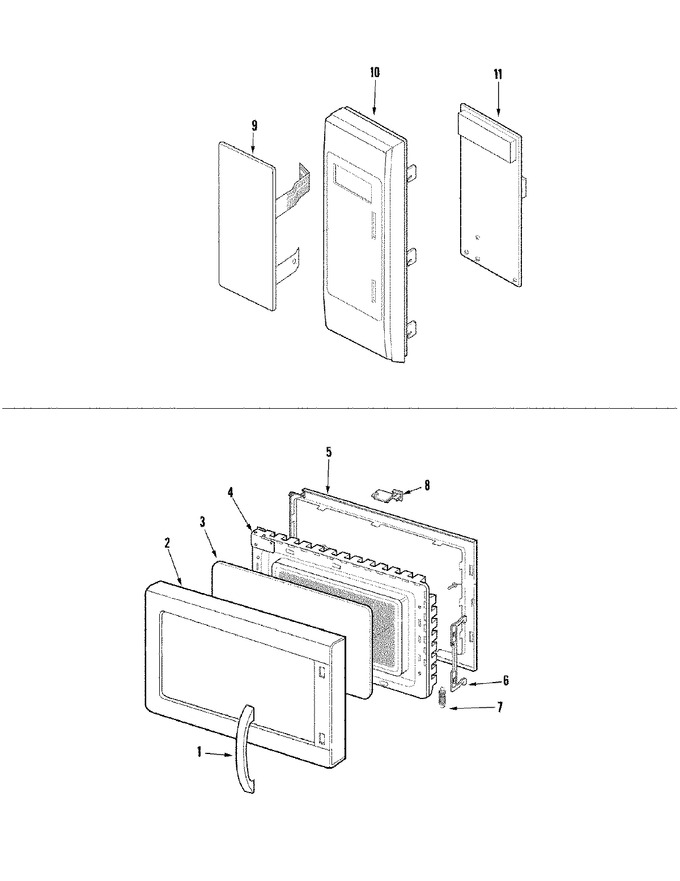

02 - Control/door
03 - Interior Controls
04 - Supplemental Information
05 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | R0130660 | Handle, Door (blk) | 10 |
|
- | ||||
| 2 | R0131045 | Panel, Door (stnls) | 10 |
|
- | ||||
| 3 | 53001132 | Glass, Door (blk) | 10 |
|
- | ||||
| 4 | R0654180 | Screw, Pan Hd | 10 |
|
- | ||||
| 4 | R0130658 | Frame, Door | 10 |
|
- | ||||
| 5 | R0130659 | Cover, Choke | 10 |
|
- | ||||
| 6 | R9900260 | Latch, Door | 10 |
|
- | ||||
| 7 | R0130663 | Spring | 10 |
|
- | ||||
| 8 | R9900342 | Cap, Top Hinge | 10 |
|
- | ||||
| 9 | 53001138 | Membrane (blk) | 10 |
|
- | ||||
| 10 | R0131046 | Panel, Control (stnls) | 10 |
|
- | ||||
| 11 | R0130666 | Control, Board | 10 |
|
$ 311.83 | ||||
| 11 | R0131048 | Screw Tapping,pan Head | 10 |
|
- |
