New Model Search:

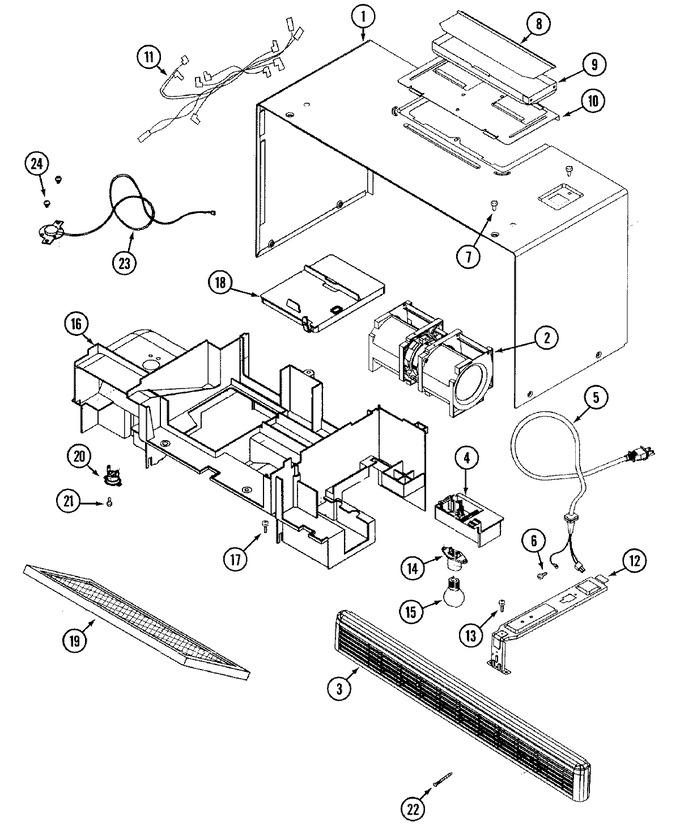

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 56001143 | Wrapper (blk) | 10 |
|
- | ||||
| 2 | 56001095 | Motor, Ventilation | 10 |
|
- | ||||
| 3 | 56001147 | Grille, Air (blk) | 10 |
|
- | ||||
| 4 | 56001090 | Bracket, Receptacle | 10 |
|
- | ||||
| 4 | 56001150 | Screw | 10 |
|
- | ||||
| 5 | 56001172 | Cord, Power | 10 |
|
- | ||||
| 6 | 56001149 | Screw | 10 |
|
- | ||||
| 7 | 56001149 | Screw | 10 |
|
- | ||||
| 8 | 56001092 | Cover, Damper | 10 |
|
- | ||||
| 9 | 56001093 | Guide, Damper | 10 |
|
- | ||||
| 10 | 56001094 | Cover, Motor | 10 |
|
- | ||||
| 10 | 56001149 | Screw | 10 |
|
- | ||||
| 11 | 56001176 | Harness, Thermostat | 10 |
|
- | ||||
| 12 | 56001091 | Bracket, Support | 10 |
|
- | ||||
| 13 | 56001150 | Screw | 10 |
|
- | ||||
| 14 | 56001070 | Receptacle, Bulb | 10 |
|
- | ||||
| 15 | 8206232A | Bulb (Replaces: 56001089) | 10 |
|
Immediately | $ 6.61 | |||
| 16 | 56001088 | Duct, Air Guide | 10 |
|
- | ||||
| 17 | 56001120 | Screw | 10 |
|
- | ||||
| 18 | 56001087 | Cover, Motor | 10 |
|
- | ||||
| 19 | WP56001084 | Filter, Charcoal (Replaces: 56001084) | 10 |
|
$ 29.84 | ||||
| 20 | 56001085 | Thermostat | 10 |
|
- | ||||
| 21 | W11233072 | Screw (no.8ab) (Replaces: 71001183) | 10 |
|
Immediately | $ 12.62 | |||
| 22 | 56001181 | Screw | 10 |
|
- | ||||
| 23 | 56001086 | Sensor, Humidity | 10 |
|
- | ||||
| 24 | 56001153 | Screw | 10 |
|
- |
