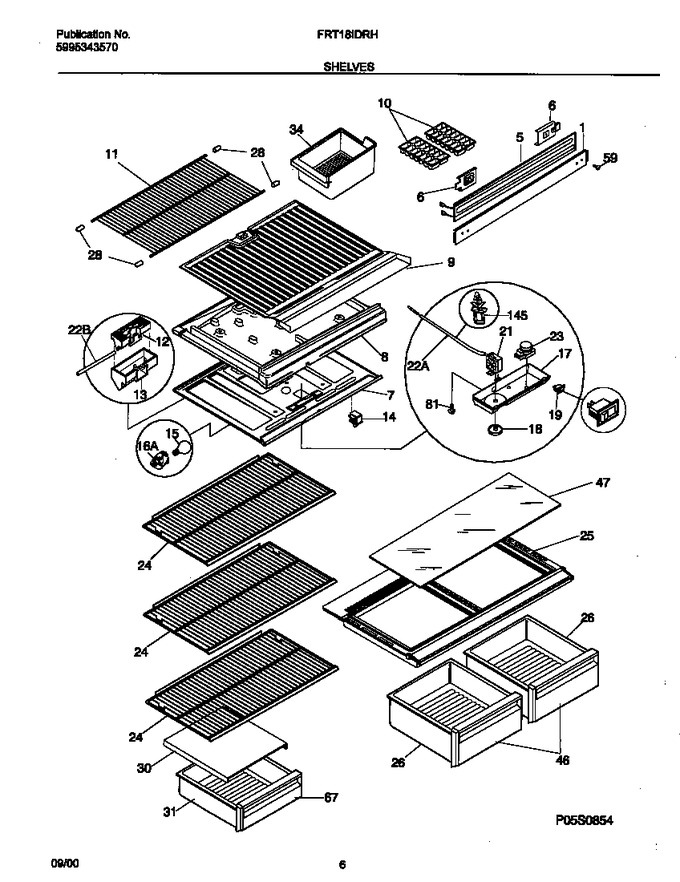

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218874301 | Mullion,white |
|
- | |||||
| 5 | 218781003 | รบ Heater-mullion |
|
$ 103.79 | |||||
| 6 | 218845602 | Tapping Plate,mullion Mtg |
|
$ 14.86 | |||||
| 7 | 218814800 | Panel-top,refr Cavity |
|
- | |||||
| 8 | 218872903 | Divider,styrofoam ,w/foil Tape |
|
$ 150.30 | |||||
| 9 | 218814700 | Panel-bottom,frzr Cavity |
|
$ 288.94 | |||||
| 10 | 215667501 | Tray-ice,plasticoptional Accessory |
|
Immediately | $ 6.07 | ||||
| 11 | 5303288242 | Shelf, Freezer, Fixed/flat, Full Width, Wire |
|
$ 403.31 | |||||
| 12 | 218730000 | Deflector-air |
|
$ 57.60 | |||||
| 13 | 218631001 | Cover-air Deflector |
|
$ 55.19 | |||||
| 14 | 5309918806 | Switch-light/lamp |
|
Immediately | $ 21.97 | ||||
| 15 | 5303001179 | Light Bulb/lamp,40 W |
|
- | |||||
| 16 | 218906802 | Socket-light/lamp (Replaces: 218906801) |
|
$ 17.72 | |||||
| 17 | 5304414816 | Control Box |
|
- | |||||
| 18 | 5303311079 | Knob-temp Control |
|
- | |||||
| 19 | 5303286905 | Switch-energy Saver, Rocker Type |
|
$ 27.08 | |||||
| 21 | 5304404821 | Control-temperature (Replaces: 5303321453) |
|
Immediately | $ 164.57 | ||||
| 22 | 5303916855 | Tube,sensor Sleeve ,plastic ,clear |
|
$ 60.96 | |||||
| 22 | 218731104 | Tube, Pvc, White, @ Air Deflector, Insulator |
|
$ 35.64 | |||||
| 23 | 215846602 | Timer-defrost,60 Hz ,120 V ,10 Hour/21 Min (Replaces: 215846605) |
|
Immediately | $ 28.20 | ||||
| 24 | 5303307451 | Shelf, Sliding, Wire, Refr Section |
|
- | |||||
| 25 | 5303207340 | Cover-crisper Pan, With Beam, Less Insert |
|
$ 265.80 | |||||
| 26 | 3206438 | Pan-crisper |
|
Immediately | $ 227.80 | ||||
| 28 | 3201150 | End Cap-shelf,protector ,frzr Shelf |
|
$ 4.57 | |||||
| 30 | 5303285319 | Cover-meat Pan |
|
$ 100.13 | |||||
| 31 | 3206209 | Pan-meat |
|
$ 183.70 | |||||
| 34 | 5303212918 | Container-ice |
|
$ 104.66 | |||||
| 46 | 5303304709 | Front-crisper Pan |
|
$ 100.28 | |||||
| 47 | 5303281398 | Insert-pan Cover, Glass |
|
$ 114.29 | |||||
| 59 | 240442708 | Screw,pan Hd ,10-32 X 0.625 ,hinge/mullion,thread Formin (Replaces: 218188000) |
|
$ 8.34 | |||||
| 67 | 5303309966 | Front-meat Pan |
|
- | |||||
| 81 | 5303001380 | Screw |
|
- | |||||
| 145 | 218660800 | Clip, Plastic, Temp Sensor Mtg, Snap-in |
|
- | |||||
| *52090 | 218878500 | Wiring Harness,control/divider |
|
$ 105.99 | |||||
| *52091 | 5303299664 | Spacer-shelf |
|
$ 24.10 | |||||
| *52092 | 5303001449 | Seal-air Deflector,foam Plastic ,(2) |
|
$ 2.12 | |||||
| *52093 | 5308016567 | Nut-anchor |
|
- | |||||
| *52094 | 5303001260 | Screw |
|
$ 6.73 | |||||
| *52095 | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 |
