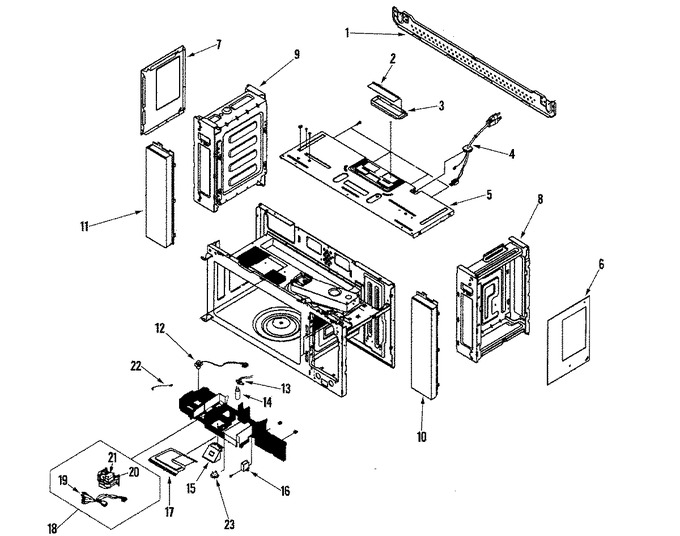

01 - Base/cavity/internal Controls
02 - Body/upper Duct
03 - Control Panel/door/grille
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE70-00546A | Plate, Mounting | 10 |
|
- | ||||
| 2 | DE71-60051A | Cover-damper | 10 |
|
$ 23.29 | ||||
| 3 | DE72-40022A | Damper-main | 10 |
|
Immediately | $ 12.07 | |||
| 4 | DE96-00218A | Assy-power Cord | 10 |
|
$ 78.75 | ||||
| 5 | DE64-01397B | Panel, Top (blk) | 10 |
|
- | ||||
| 6 | DE64-01407B | Panel, Side (rt-blk) | 10 |
|
- | ||||
| 7 | DE64-01406B | Panel, Side (lt-blk) | 10 |
|
- | ||||
| 10 | DE97-00583A | Panel, Decor (rt-blk) | 10 |
|
- | ||||
| 11 | DE97-00584A | Panel, Decor (lt-blk) | 10 |
|
- | ||||
| 12 | DE97-00585A | Assy-sensor Humidity;smh7175we | 10 |
|
$ 9.25 | ||||
| 13 | DE47-00020A | Socket, Lamp | 10 |
|
$ 28.04 | ||||
| 14 | 4713-001165 | Lamp-halogen | 10 |
|
Immediately | $ 33.30 | |||
| 15 | DE63-00188A | Cover, Lamp | 10 |
|
- | ||||
| 16 | DE59-50002A | Capacitor-motor | 10 |
|
Immediately | $ 27.34 | |||
| 17 | DE61-00410A | Bracket-duct Upper | 10 |
|
- | ||||
| 18 | DE31-10154C | Motor-drive | 10 |
|
$ 56.08 | ||||
| 18 | DE97-00181A | Assy-cam Louver;jvm-1860,assem | 10 |
|
- | ||||
| 18 | DE72-00145A | Cam-louver | 10 |
|
$ 13.33 | ||||
| 18 | DE61-00118A | Bracket-cam Plate | 10 |
|
- | ||||
| 19 | DE39-00253A | Wire Harness-cam;jvm-1860,-,-, | 10 |
|
- | ||||
| 20 | 3405-001051 | Switch-micro | 10 |
|
- | ||||
| 21 | 3405-001050 | Switch-micro | 10 |
|
$ 27.34 | ||||
| 22 | DE39-30099A | Assy Wire Lead-f;l140 Jvm-1340 | 10 |
|
- | ||||
| 23 | 555555 | Sw-thermo (Replaces: DE47-20059A) | 10 |
|
$ 151.94 |
