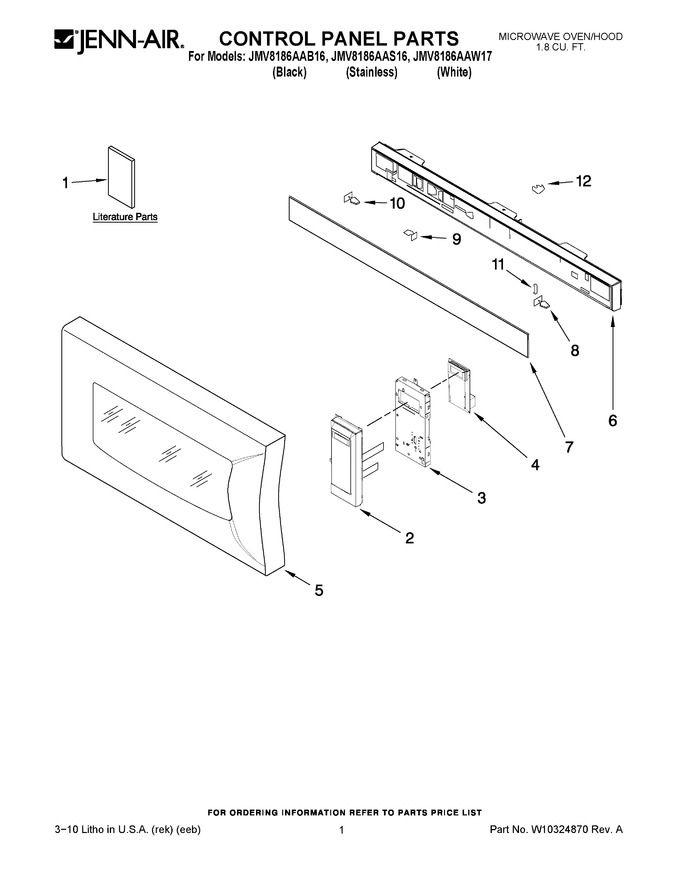

01 - Control Panel Parts
02 - Cabinet And Air Flow Parts
03 - Interior And Ventilation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10177942 | U & C Guide |
|
- | |||||
| 2 | DE94-01319A | Panel Asy, Control Membrane, Lens And Bracket (stainless) |
|
$ 132.94 | |||||
| 2 | DE94-01331A | Panel Asy, Control Membrane, Lens And Bracket (black) |
|
- | |||||
| 2 | DE94-01331B | Panel Asy, Control Membrane, Lens And Bracket (white) |
|
- | |||||
| 3 | DE97-00359C | Bracket, Control |
|
- | |||||
| 4 | W10182102 | Microcomputer |
|
- | |||||
| 5 | DE94-01315A | Complete Door (stainless) |
|
- | |||||
| 5 | DE94-01332B | Complete Door (white) |
|
- | |||||
| 5 | DE94-01332A | Complete Door (black) |
|
- | |||||
| 6 | DE64-01400A | Frame, Grille (black, Ss Model) |
|
- | |||||
| 6 | DE64-01400B | Frame, Grille (white) |
|
- | |||||
| 7 | DE97-00588B | Cover, Grille (black) |
|
- | |||||
| 7 | DE97-00588C | Cover, Grille (white) |
|
- | |||||
| 7 | DE97-00588A | Cover, Grille (stainless) |
|
- | |||||
| 8 | DE61-00128A | Hinge, Right |
|
$ 16.82 | |||||
| 9 | DE61-00177A | Hinge, Middle |
|
$ 17.58 | |||||
| 10 | DE61-00129A | Hinge, Left |
|
$ 16.82 | |||||
| 11 | DE61-00527A | Spring, Louver |
|
$ 16.82 | |||||
| 12 | DE63-00244A | Earth-grille |
|
- |
