01 - Base/latch Board Assembly


02 - Blower Motor


03 - Cavity


04 - Control Panel/door Assembly


05 - Installation


06 - Outer Case/vent Grille


07 - Supplemental Information

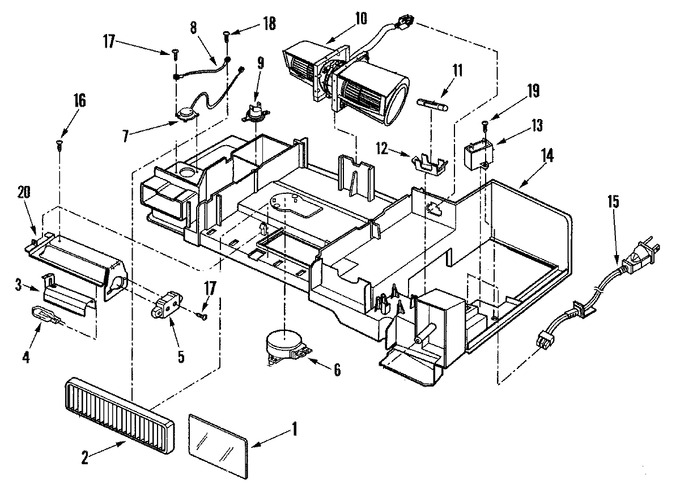

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	53001753		Glass	10	Appelez-nous	-
2	WP53001442		Filter (charcoal)   (Replaces: 53001442)	10			$ 33.60
3	53001417		Reflector	10	Appelez-nous	-
4	WP53001905		Lamp, Halogen   (Replaces: 53001420)	10		Immediately	$ 53.43
5	53001732		Holder Assembly	10	Appelez-nous	-
6	53001406		Motor, Stirrer Blade	10	Appelez-nous	-
7	53001432		Sensor Assembly	10			$ 67.18
8	R9800470		Wire	10	Appelez-nous	-
9	W10864742		Thermal Cut Out- Cavity   (Replaces: 53001561)	10			$ 76.01
10	53001510		Motor, Ventilation	10	Appelez-nous	-
11	W10124350		Not Required Part Or See Note	11	Appelez-nous	-
11	WP8183507		Fuse   (Replaces: R0131110)	10			$ 18.33
12	W10124350		Not Required Part Or See Note	11	Appelez-nous	-
12	R0131021		Holder, Fuse	10	Appelez-nous	-
13	53001344		Capacitor	10	Appelez-nous	-
14	53001541		Duct	10	Appelez-nous	-
15	R9800466		Cord, Power	10	Appelez-nous	-
16	4344826		Screw, Bining Hd S/tap   (Replaces: R0654143)	10			$ 14.31
17	53001463		Screw, Pan Head	10	Appelez-nous	-
18	R0654183		Screw, Truss Hd	10	Appelez-nous	-
19	WP59002061		Screw, Self Tapp Truss Hd   (Replaces: 53001754)	10			$ 6.98
20	53001731		Cover, Lamp	10	Appelez-nous	-
21	R9800472		Assy, Fuse Block/noise Filter	11	Appelez-nous	-
