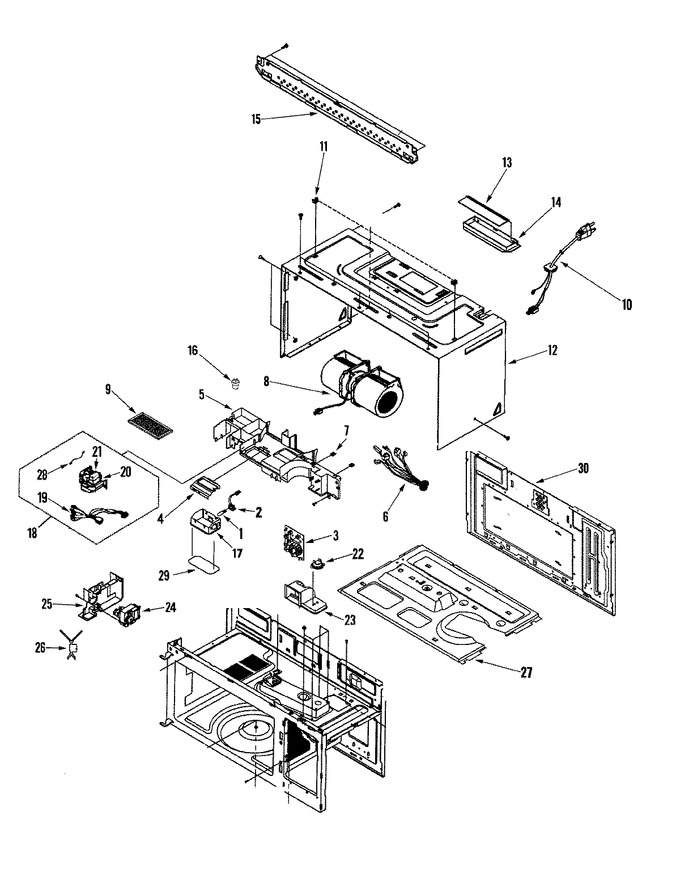

01 - Base/cavity/internal Controls
02 - Body/blower Motor
03 - Control Panel/door/grille
04 - Convection Fan Assembly
05 - Supplemental Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4713-001165 | Lamp-halogen | 10 |
|
Immediately | $ 33.30 | |||
| 2 | DE47-00032A | Socket-lamp Halogen | 10 |
|
- | ||||
| 3 | DE96-00400A | Assy Noise Filter;sn-uf12a,250 | 10 |
|
$ 84.88 | ||||
| 4 | DE61-00806A | Bracket-duct (u) | 10 |
|
- | ||||
| 5 | DE67-00177A | Duct-upper | 10 |
|
- | ||||
| 6 | DE96-00556A | Asy-wire Harness C | 10 |
|
- | ||||
| 7 | DE60-30063A | Nut-mounting | 10 |
|
$ 11.37 | ||||
| 8 | DE31-00028C | Motor Ventilation | 10 |
|
- | ||||
| 9 | 555555 | Filter-charcoal (Replaces: DE63-00367D) | 10 |
|
$ 151.94 | ||||
| 10 | DE96-00218A | Assy-power Cord | 10 |
|
$ 78.75 | ||||
| 11 | DE92-90508A | Assy-holder Nut | 10 |
|
Immediately | $ 17.58 | |||
| 12 | DE64-01144A | Panel-outer (blk) | 10 |
|
$ 128.11 | ||||
| 13 | DE71-60051A | Cover-damper | 10 |
|
$ 23.29 | ||||
| 14 | DE72-40022A | Damper-main | 10 |
|
Immediately | $ 12.07 | |||
| 15 | 555555 | Plate-mounting (Replaces: DE70-00378A) | 10 |
|
$ 151.94 | ||||
| 16 | DE32-60011A | Sensor-gas | 10 |
|
Immediately | $ 86.27 | |||
| 16 | DE61-00525A | Holder-sensor | 10 |
|
$ 2.94 | ||||
| 17 | DE61-00486A | Bracket-oven | 10 |
|
- | ||||
| 18 | DE97-00423A | Asy-cam Louver | 10 |
|
$ 132.19 | ||||
| 18 | DE31-10154C | Motor-drive | 10 |
|
$ 56.08 | ||||
| 18 | DE61-00118A | Bracket-cam Plate | 10 |
|
- | ||||
| 18 | DE72-00145A | Cam-louver | 10 |
|
$ 13.33 | ||||
| 19 | DE39-00361A | Wire Harness-cam | 10 |
|
- | ||||
| 20 | 3405-001051 | Switch-micro | 10 |
|
- | ||||
| 21 | 3405-001050 | Switch-micro | 10 |
|
$ 27.34 | ||||
| 22 | 555555 | Thermostat (Replaces: DE47-20007A) | 10 |
|
$ 151.94 | ||||
| 23 | DE67-00186A | Duct-exhaust | 10 |
|
- | ||||
| 24 | DE31-00032A | Motor Convection | 10 |
|
$ 86.14 | ||||
| 25 | DE61-00601A | Guide-air (heater) | 10 |
|
- | ||||
| 26 | DE66-00135A | Pulley-fan Motor | 10 |
|
- | ||||
| 27 | DE97-00426A | Assy-cover Adibatic Upper | 10 |
|
- | ||||
| 28 | DE39-00364A | Cbf Lead Wire-e | 10 |
|
- | ||||
| 29 | DE64-01088A | Glass-oven Lamp | 10 |
|
$ 20.08 | ||||
| 30 | DE97-00426A | Assy-cover Adibatic Upper | 10 |
|
- |
