View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

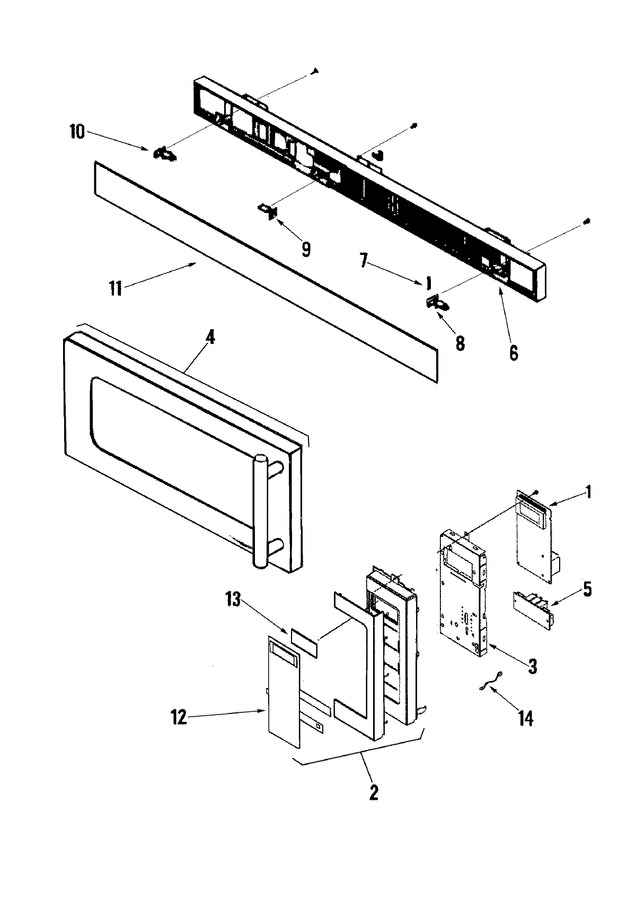

01 - Base/cavity/internal Controls
02 - Body/blower Motor
03 - Control Panel/door/grille
04 - Convection Fan Assembly
05 - Supplemental Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10127103 | Asy Pcb (upr) | 10 |
|
- | ||||
| 2 | DE94-01407B | Asy Control Panel (wht) | 10 |
|
- | ||||
| 3 | DE97-00633A | Asy-bkt-c/panel | 10 |
|
$ 21.69 | ||||
| 4 | DE94-01398B | Asy Door (wht) | 10 |
|
- | ||||
| 5 | W10127105 | Asy Pcb (lwr) | 10 |
|
- | ||||
| 6 | DE64-01455B | Grille (wht) | 10 |
|
$ 115.38 | ||||
| 7 | DE61-00527A | Spring Etc-louver;jvm-2070,hsw | 10 |
|
$ 16.82 | ||||
| 8 | DE61-00128A | Hinge-grille(r) | 10 |
|
$ 16.82 | ||||
| 9 | DE61-00177A | Hinge-grille(m) | 10 |
|
$ 17.58 | ||||
| 10 | DE61-00129A | Hinge-grille(l) | 10 |
|
$ 16.82 | ||||
| 11 | DE97-00656C | Cover, Grille (wht) | 10 |
|
$ 72.23 | ||||
| 12 | DE34-00234B | Switch Membrane | 10 |
|
- | ||||
| 13 | DE64-00766B | Window-display;4150,san,t2.0,w | 10 |
|
$ 13.33 | ||||
| 30 | DE97-00426A | Assy-cover Adibatic Upper | 10 |
|
- |
