SELECT A DIAGRAM
01 - Control Panel Parts

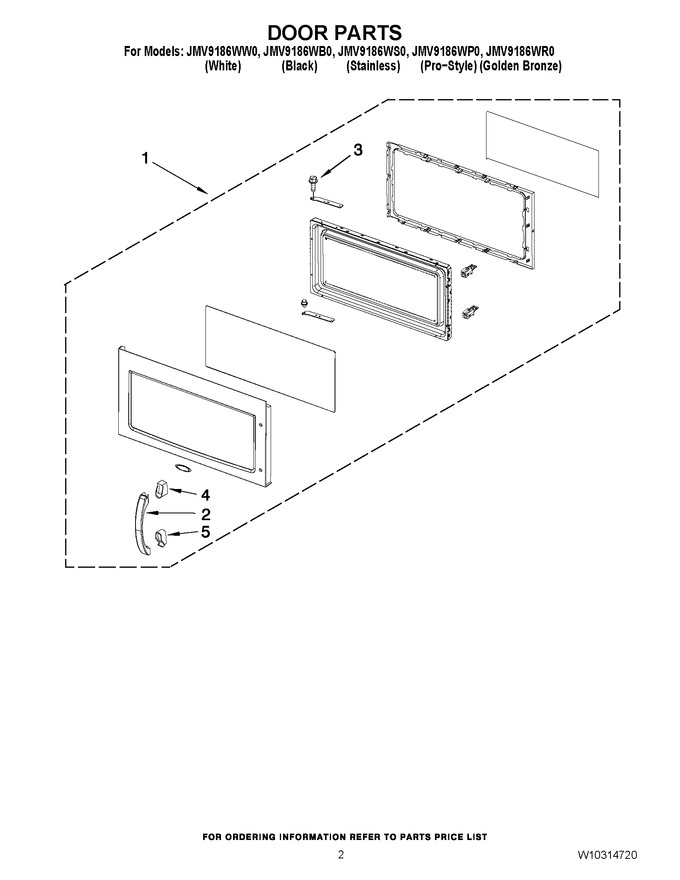

02 - Door Parts
03 - Interior And Ventilation Parts
04 - Air Flow Parts
05 - Turntable Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10310710 | Complete Door (black) |
|
- | |||||
| 1 | W10310706 | Complete Door (stainless) |
|
- | |||||
| 1 | W10310707 | Complete Door (pro-style) |
|
- | |||||
| 1 | W10310709 | Complete Door (white) |
|
- | |||||
| 1 | W10310708 | Complete Door (golden Bronze) |
|
- | |||||
| 2 | W10310702 | Handle (pro-style) |
|
- | |||||
| 2 | W10310704 | Handle (white) |
|
- | |||||
| 2 | W10310705 | Handle (black) |
|
- | |||||
| 2 | W10310701 | Handle (stainless) |
|
- | |||||
| 2 | W10310703 | Handle (golden Bronze) |
|
- | |||||
| 3 | W10138802 | Screw |
|
$ 9.80 | |||||
| 4 | W10420761 | Bracket, Handle (upper) (white) |
|
- | |||||
| 4 | W10420755 | Bracket, Handle (upper) (black, Stainless & Golden Bronze) |
|
- | |||||
| 4 | W10420764 | Bracket, Handle (upper) (pro-style) |
|
- | |||||
| 5 | W10420756 | Bracket, Handle (lower) (black, Stainless & Golden Bronze) |
|
- | |||||
| 5 | W10420764 | Bracket, Handle (lower) (pro-style) |
|
- | |||||
| 5 | W10420762 | Bracket, Handle (lower) (white) |
|
- |
