SELECT A DIAGRAM

01 - Oven Parts


02 - Oven Door Parts


03 - Internal Oven Parts

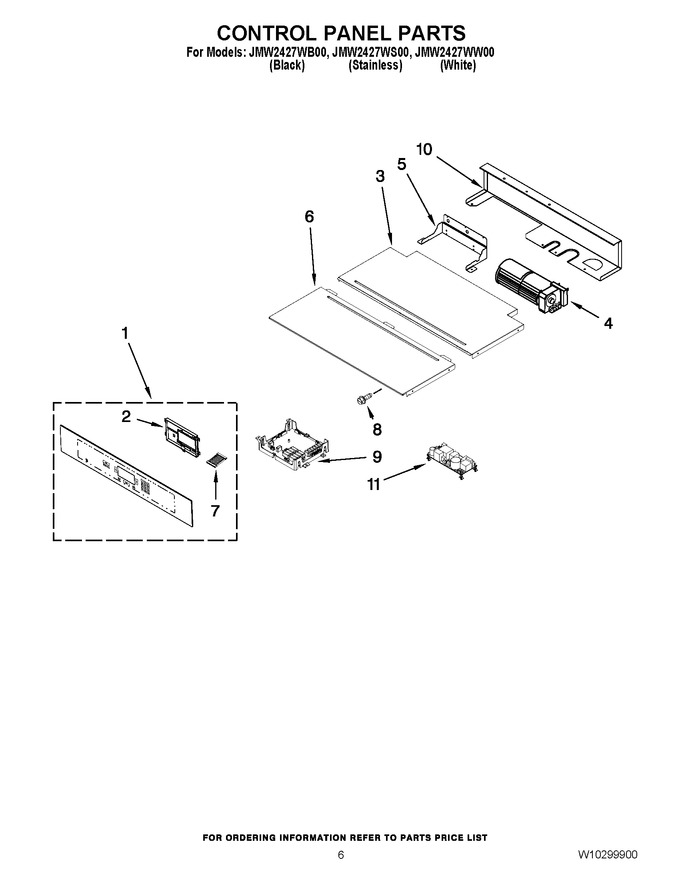

04 - Control Panel Parts


05 - Cabinet And Stirrer Parts


06 - Microwave Compartment Parts


07 - Microwave Door Parts


08 - Top Support And Turntable Parts


09 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10212843		Assembly, Control Panel (black)		Appelez-nous	-
1	W10205343		Assembly, Control Panel (stainless)		Appelez-nous	-
1	W10344119		Assembly, Control Panel (white)   (Replaces: W10212844)		Appelez-nous	-
2	W10285937		Assy., Ui Core		Appelez-nous	-
3	W10176095		Panel, Rear		Appelez-nous	-
4	WPW10273667		Blower   (Replaces: W10273667)			Immediately	$ 269.68
5	W10186997		Bracket, Cooling Fan				$ 73.49
6	W10176093		Panel, Front		Appelez-nous	-
7	W10175829		Cable		Appelez-nous	-
8	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
9	W10292566		Manager, Appliance				$ 376.13
10	W10186983		Bracket, 2nd Blower		Appelez-nous	-
11	WPW10286791		Control, Power Microwave, Ui   (Replaces: W10286791)			Immediately	$ 251.06

    View Diagram in Separate Window       Print Part List
