SELECT A DIAGRAM

01 - Oven Parts


02 - Oven Door Parts

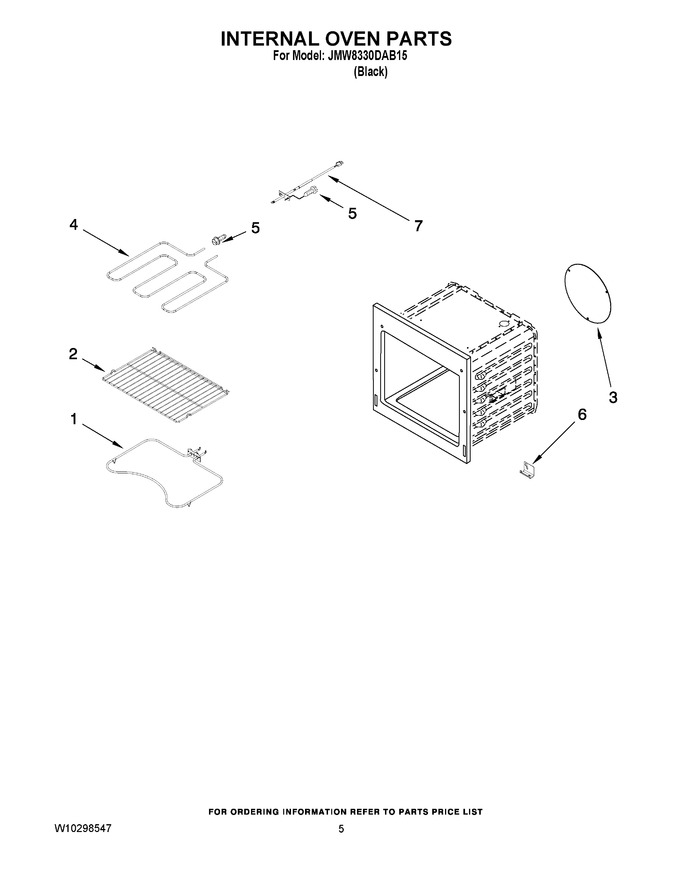

03 - Internal Oven Parts


04 - Control Panel Parts


05 - Microwave Door Parts


06 - Microwave Control Panel Parts


07 - Microwave Oven Cavity Parts


08 - Microwave Latch Board Parts


09 - Microwave Interior Parts


10 - Microwave Base Plate Parts


11 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10310258		Element, Bake   (Replaces: 7406P271-60)			Immediately	$ 136.74
2	WPW10282527		Rack, Oven (2)   (Replaces: W10282527)				$ 149.26
3	3605F211-19		Plate, Non-convect		Appelez-nous	-
4	7406P273-60		Element, Broil		Appelez-nous	-
5	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
6	7112P126-60		Clip, Oven		Appelez-nous	-
7	12001656		Sensor, Oven   (Replaces: 7430P042-60)			Immediately	$ 39.55

    View Diagram in Separate Window       Print Part List
